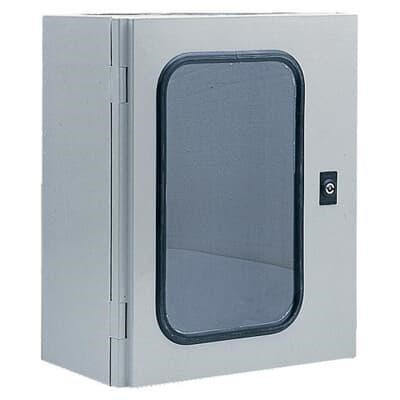

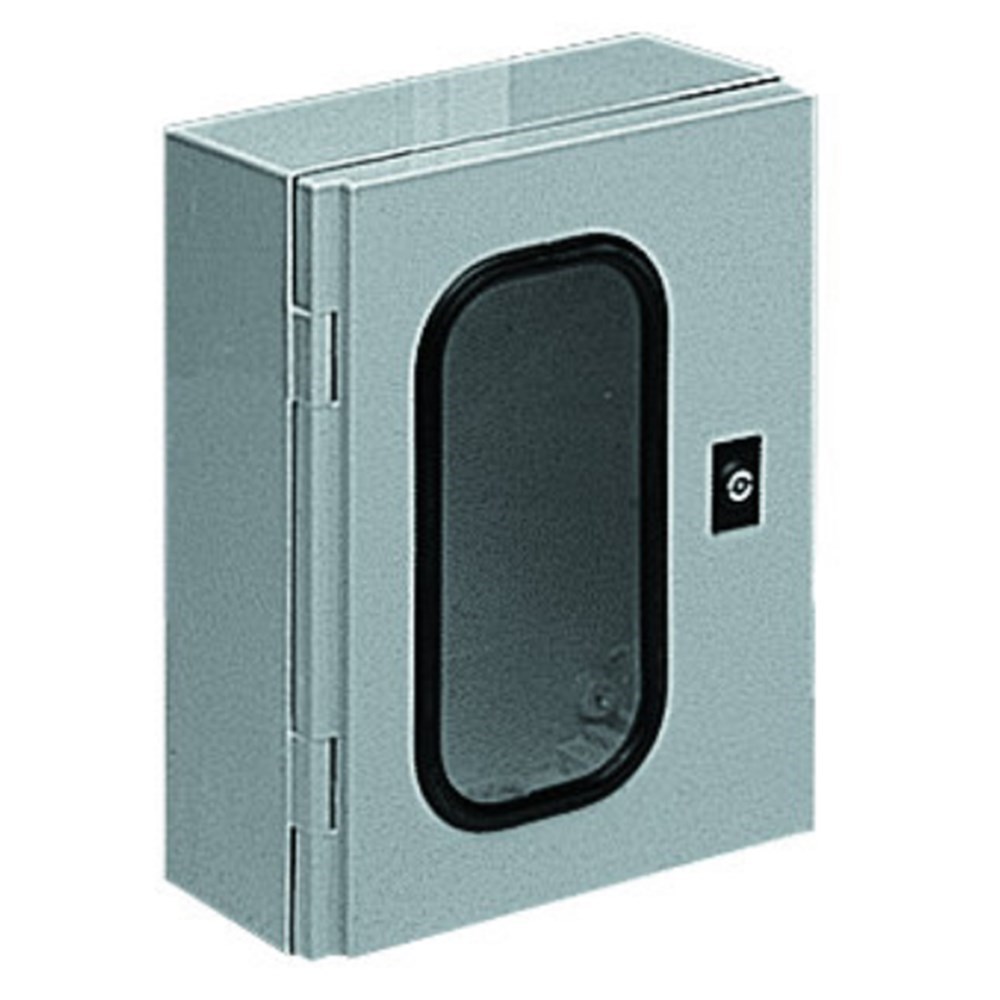

ABB ARIA64GD POLYESTER CABINET WITH GLAZED DOOR IP66

Product Code: ARIA64GD

The Universal glass fibre reinforced polyester cabinet is designed for harsh external applications and heavy industry environments such as mining, shipyards, and marine/oil environments. It is made of grey RAL7035 glass fibre reinforced polyester material and features a glazed door with an IP66 rating. The cabinet has a central double bit 3-point locking mechanism for added security. With a high temperature rating of up to 70°C continuous temperature, it can withstand extreme heat. The cabinet is maintenance-free and corrosion resistant, ensuring long-lasting durability. It is designed for both wall and pole mounting and has dimensions of 615Hx415Wx230Dmm.

Technical Specifications

Brand ABB
Application Harsh external and heavy industry applications
Colour Glazed
Degree of Protection IP66
Dimensions (mm) 615H x 415W x 230D
Door Type Glazed Door
Mounting Type Wall/ Pole mounted
No. of Locks 3 Points
