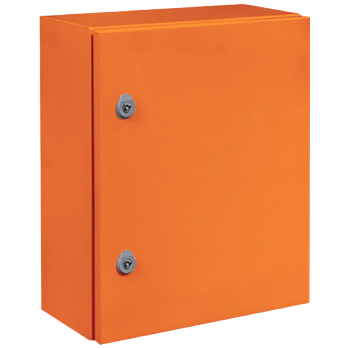

IDE MSB504030A Mild Steel Enclosure Cold Rolled Steel 400W 500H 300D RAL2008 Orange IP66

Product Code: MSB504030A

  • Wall-mount cabinet with IP66 protection
  • Handles up to 1000 VAC, 1500 VDC
  • Durable cold rolled steel construction
  • Versatile single/double reversible door
  • Operates in -25 to 60°C environments
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Orange RAL 2008
Degree of Protection IP66
Depth 300 mm
Door Profiles 2
Door Type Single/Double Reversible
Gasket Material Polyurethane
Height 500 mm
Material Cold Rolled Steel
Net Weight 14.1 kg
Number of Hinges 2
Number of Locks 2
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-28, UL 508A
Width 400 mm

Description

<p>When choosing a wall-mounting cabinet for your industrial or commercial needs, the key is to find one that balances durability and functionality. This particular model is designed with precision and built using cold-rolled steel, ensuring robustness and longevity in demanding environments.</p><p>Rated for operational voltages up to 1000 VAC and 1500 VDC, this cabinet offers flexibility across various applications. Its IP66 degree of protection means it provides excellent resistance against dust ingress and powerful water jets, making it suitable for both indoor and outdoor installations where protection from harsh conditions is essential.</p><p>With dimensions of 400 mm in width, 500 mm in height, and 300 mm in depth, this cabinet offers ample space while maintaining a compact footprint. It&amp;#39;s finished in an eye-catching orange RAL 2008 color that enhances visibility—an important feature for safety compliance and easy identification on busy sites.</p><p>The ambient temperature range of -25 to 60 degrees Celsius ensures reliable performance across diverse climates—from chilly warehouses to warmer industrial settings. The single/double reversible door design adds versatility during installation, allowing you to adapt the setup based on spatial constraints or user preference.</p><p>A key component of its sealing efficiency is the polyurethane gasket material used around the door frame. This high-quality gasket helps maintain the enclosure&amp;#39;s integrity by providing a tight seal that prevents moisture ingress—a critical factor when housing sensitive electrical components.</p><p>Adhering to international standards such as IEC 62208, IEC 61439-28, and UL 508A guarantees this cabinet meets rigorous safety guidelines required for electrical enclosures globally. These certifications provide peace of mind knowing you&amp;#39;re investing in a product that&amp;#39;s recognized for quality assurance worldwide.</p><p>At a net weight of just 14.1 kg, this cabinet strikes an ideal balance between sturdiness and ease of handling during installation or relocation efforts without compromising its structural integrity.</p><p>Overall, if you’re seeking a reliable solution that combines protective features with industry-standard compliance while offering practical usability options like reversible doors—this wall-mounting cabinet stands out as an optimal choice tailored for professional settings requiring dependable equipment housing solutions.</p>
