Brand	IDE
Ambient Temperature Range (°C)	-25 to +60
Application	Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Cable Entry (mm)	125H x 685W
Certifications	UL508A
Colour	RAL 7035
Customs Tariff Number	85.38.10.00
Degree of Protection	IP66
Dimensions (mm)	800H x 800W x 400D
Directive	2014/35/EU
Door Profiles	2
Door Type	Single
EAN	8431044008486
ETIM 8.0	EC000261
Finish	Coated with primer, and hardened polyester paint, textured, with UV protection
Installation	Surface
Lock Type	5-mm double-bit lock - Two 1-point lock
Material	Cold-rolled steel EN 10130+A1
Maximum Cabinet Load (kg)	325
Maximum Door Load (kg)	25
Maximum Mounting Plate Load (kg)	300
Maximum Operational Voltage (V)	1000 AC / 1500 DC
Mounting Plate	With flat mounting plate. 2-mm galvanised sheet steel
Mounting Plate Size (mm)	770W x 750H
NEMA Degree of Protection	NEMA 1, 12, 4
No. of Hinges	3
No. of Locks	2
Product End of Life	It does not require specific recycling operations.
Rated Impact Resistance	IK10
Sealing Gasket	Injected polyurethane sealing gasket
Standards	IEC 62208, IEC 61439-1
Supply	Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied assembled inside the cabinet.
Thickness (mm)	Enclosure: 1.5 Door: 1.5 Cable entry lid: 2
Type of Door	Single opaque door. Reversible
Usable Internal Space (mm)	750H x 750W x 379D
Wall Fixing (mm)	760H x 960W
Weight (kg)	45.2

Metal Enclosures & Accessories

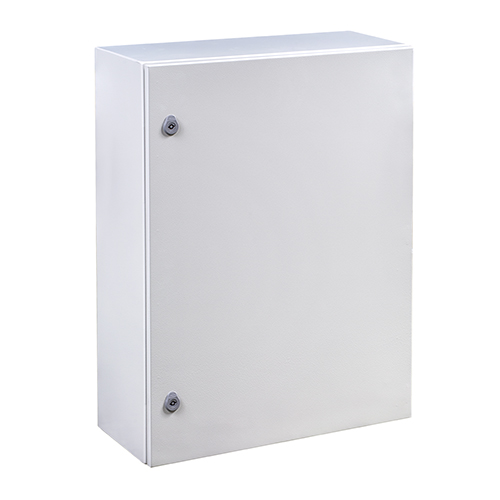

IDE IP66 ROLLED MILD STEEL SINGLE DOOR WALL MOUNTED ENCLOSURE 800Hx800Wx400Dmm GREY MSB808040G
