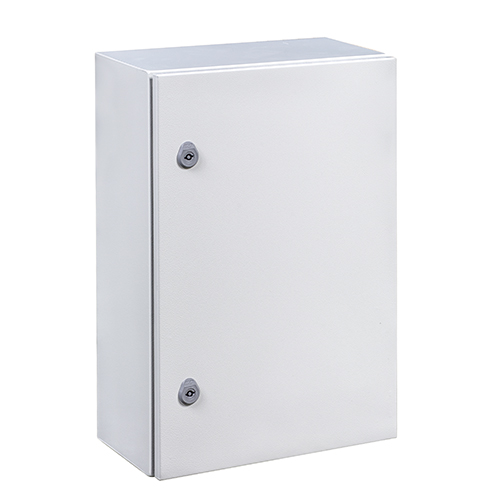

IDE MSB804020G Mild Steel Enclosure Cold Rolled Steel 400W 800H 200D RAL7035 Light Grey IP66

Product Code: MSB804020G

  • Wall-mount cabinet with IP66 protection
  • Cold rolled steel construction
  • Operates at up to 1000 VAC, 1500 VDC
  • Ambient temp range: -25 to 60°C
  • Compliant with IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 200 mm
Door Profiles 2
Door Type Single/Double Reversible
Gasket Material Polyurethane
Height 800 mm
Material Cold Rolled Steel
Net Weight 20.9 kg
Number of Hinges 3
Number of Locks 2
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-73, UL 508A
Width 400 mm

Description

<p>For professionals in the industrial and commercial sectors, selecting the right wall-mounting cabinet is crucial to ensure safe and efficient operations. This particular cabinet is designed with a focus on durability, protection, and versatility, making it a solid choice for various applications.</p><p>Constructed from cold rolled steel, this wall-mounting cabinet offers robust physical protection while maintaining a sleek appearance with its light grey RAL 7035 finish. Its dimensions—400 mm in width, 800 mm in height, and 200 mm in depth—make it suitable for installations where space efficiency is key without compromising on capacity.</p><p>The cabinet&amp;#39;s operational voltage ratings are impressive, accommodating up to 1000 VAC and 1500 VDC. This high voltage capability ensures compatibility with a wide range of electrical systems commonly found in industrial settings.</p><p>One of the standout features of this cabinet is its IP66 degree of protection. This rating signifies that the enclosure provides complete protection against dust ingress and powerful water jets from any direction. Such resilience makes it ideal for environments where exposure to harsh elements is a concern.</p><p>Temperature tolerance is another critical factor addressed by this product. With an ambient temperature range from -25&amp;#176;C to 60&amp;#176;C, it can reliably perform across diverse climates—be it frigid conditions or hotter locales typical within Australia’s varied landscapes.</p><p>Compliance with international standards such as IEC 62208 and IEC 61439-73 underscores its quality assurance credentials. Additionally, UL 508A approval further attests to its suitability for use within North American markets—a testament to its global applicability.</p><p>The door design adds flexibility; users can choose between single or double reversible doors depending on their specific access needs or spatial constraints. The polyurethane gasket material ensures a tight seal against environmental factors while maintaining ease of access when necessary.</p><p>Weighing in at just under 21 kg (20.9 kg), this cabinet strikes an excellent balance between sturdiness and manageability during installation processes.</p><p>In summary, this wall-mounting cabinet combines essential technical specifications with practical design considerations tailored for demanding professional environments. Whether you&amp;#39;re upgrading existing infrastructure or setting up new installations requiring reliable enclosures that meet stringent safety standards—this product merits serious consideration based on factual performance metrics rather than mere aesthetics alone.</p>
