Product Code: MSB801230DDG

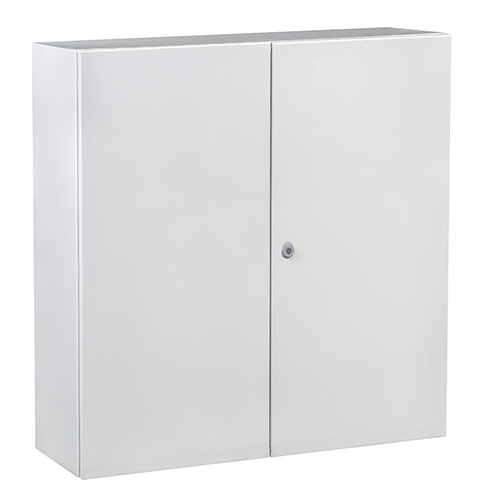

The mild steel enclosure is coated with a grey RAL7035 polyester powdercoat, making it resistant to dust and water with an IP55 rating. It features a double door that can be opened up to 110 degrees in either direction. The doors are secured with a 3-point locking rod and supported by 3 hinges for added stability. To ensure proper sealing, the enclosure is equipped with an injected polyurethane sealing gasket. There are two cable entries, each measuring 140x500mm. The dimensions of the enclosure are 800mm in height, 1200mm in width, and 300mm in depth.

Brand	IDE
Ambient Temperature Range (°C)	-25 to +60
Application	Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Cable Entry (mm)	2 x (125H x 485W)
Certifications	UL508A
Colour	RAL 7035
Customs Tariff Number	85.38.10.00
Degree of Protection	IP55
Dimensions (mm)	800H x 1200W x 300D
Directive	2014/35/EU
Door Profiles	4
Door Type	Double
EAN	8431044075679
ETIM 8.0	EC000261
Finish	Coated with primer, and hardened polyester paint, textured, with UV protection
Installation	Surface
Lock Type	5-mm double-bit lock - One 3-point lock
Material	Cold-rolled steel EN 10130+A1
Maximum Operational Voltage (V)	1000 AC / 1500 DC
Mounting Plate	With flat mounting plate. 2-mm galvanised sheet steel
Mounting Plate Size (mm)	770W x 1150H
NEMA Degree of Protection	NEMA 1, 12
No. of Hinges	6
No. of Locks	3 points
Product End of Life	It does not require specific recycling operations.
Rated Impact Resistance	IK10
Sealing Gasket	Injected polyurethane sealing gasket
Standards	IEC 62208, IEC 61439-1
Supply	Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied assembled inside the cabinet.
Thickness (mm)	Enclosure: 1.5 Door: 2 Cable entry lid: 2
Type of Door	Double opaque door. Reversible
Usable Internal Space (mm)	750H x 1150W x 279D
Wall Fixing (mm)	760H x 960W
Weight (kg)	59.7
