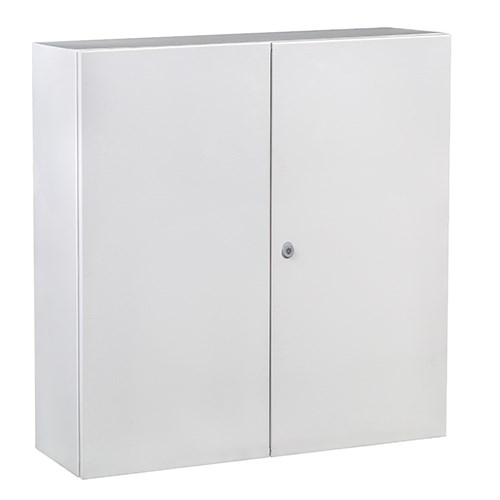

IDE IP55 ROLLED MILD STEEL DOUBLE DOOR WALL MOUNTED ENCLOSURE 800Hx1000Wx300Dmm GREY MSB801030DDG

Product Code: MSB801030DDG

The mild steel enclosure is coated with a grey RAL7035 polyester powdercoat, making it resistant to corrosion. It has an IP55 rating, indicating its protection against dust and water ingress. The double doors can be opened up to 110 degrees and are reversible for convenience. The enclosure is secured with a 3-point locking rod and 3 hinges for added security. It features an injected polyurethane sealing gasket to ensure a tight seal. The cable entry measures 140x900, allowing for easy installation of cables. The dimensions of the enclosure are 800mm in height, 1000mm in width, and 300mm in depth.

Technical Specifications

Brand IDE
Ambient Temperature Range (°C) -25 to +60
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Cable Entry (mm) 125H x 885W
Certifications UL508A
Colour RAL 7035
Customs Tariff Number 85.38.10.00
Degree of Protection IP55
Dimensions (mm) 800H x 1000W x 300D
Directive 2014/35/EU
Door Profiles 4
Door Type Double
EAN 8431044495095
ETIM 8.0 EC000261
Finish Coated with primer, and hardened polyester paint, textured, with UV protection
Installation Surface
Lock Type 5-mm double-bit lock - One 3-point lock
Material Cold-rolled steel EN 10130+A1
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Mounting Plate With flat mounting plate. 2-mm galvanised sheet steel
Mounting Plate Size (mm) 770W x 950H
NEMA Degree of Protection NEMA 1, 12
No. of Hinges 6
No. of Locks 3 points
Product End of Life It does not require specific recycling operations.
Rated Impact Resistance IK10
Sealing Gasket Injected polyurethane sealing gasket
Standards IEC 62208, IEC 61439-1
Supply Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied assembled inside the cabinet.
Thickness (mm) Enclosure: 1.5 Door: 2 Cable entry lid: 2
Type of Door Double opaque door. Reversible
Usable Internal Space (mm) 750H x 950W x 279D
Wall Fixing (mm) 760H x 960W
Weight (kg) 51.2
