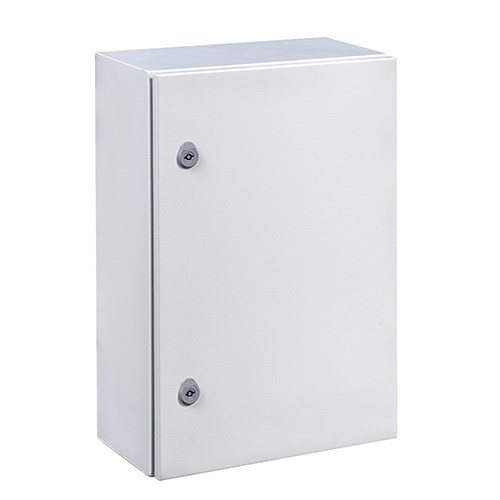

IDE MSB705030G Mild Steel Enclosure Cold Rolled Steel 500W 700H 300D RAL7035 Light Grey IP66

Product Code: MSB705030G

  • Wall-mount cabinet with IP66 protection
  • Supports 1000 VAC & 1500 VDC
  • Made from cold rolled steel
  • Light grey RAL 7035 finish
  • Meets IEC & UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 300 mm
Door Profiles 2
Door Type Single/Double Reversible
Gasket Material Polyurethane
Height 700 mm
Material Cold Rolled Steel
Net Weight 25.1 kg
Number of Hinges 2
Number of Locks 2
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-58, UL 508A
Width 500 mm

Description

<p>When it comes to selecting a reliable wall-mounting cabinet for industrial or commercial applications, this product stands out with its robust features and compliance with essential standards. Designed to meet the rigorous demands of various environments, this cabinet offers a practical solution for housing sensitive electrical components.</p><p>Constructed from cold rolled steel, the cabinet ensures durability and longevity under harsh conditions. Its IP66 degree of protection guarantees complete dust-tight sealing and protection against powerful water jets, making it suitable for both indoor and outdoor installations. This level of protection is crucial for safeguarding equipment from environmental factors that could compromise performance.</p><p>The cabinet&amp;#39;s dimensions—500 mm in width, 700 mm in height, and 300 mm in depth—offer ample space for organizing components while maintaining a compact footprint. The light grey RAL 7035 finish not only provides an aesthetically pleasing appearance but also enhances visibility in dimly lit areas.</p><p>One of the key technical specifications is its rated operational voltage capacity, supporting up to 1000 VAC and 1500 VDC. This wide range accommodates various power requirements across different applications. Additionally, the ambient temperature rating between -25&amp;#176;C to 60&amp;#176;C ensures reliable operation in diverse climatic conditions.</p><p>Flexibility is another highlight of this product; the door can be configured as single or double reversible depending on installation needs. This feature allows easy access to internal components during maintenance or upgrades without compromising security or integrity.</p><p>The polyurethane gasket material further reinforces the cabinet&amp;#39;s protective capabilities by providing an effective seal against ingress of dust and moisture. Weighing in at a manageable net weight of 25.1 kg, installation can be conducted efficiently without requiring extensive manpower or specialized equipment.</p><p>Adhering to international standards such as IEC 62208, IEC 61439-58, and UL 508A underscores its quality assurance and compatibility with global safety regulations—a critical consideration when integrating into existing systems or specifying new installations.</p><p>In summary, this wall-mounting cabinet combines robust construction with versatile design elements tailored for demanding environments. Whether you&amp;#39;re setting up infrastructure in an industrial plant or commercial facility, this cabinet delivers reliability backed by adherence to stringent standards—ensuring your operations remain secure and efficient.</p>
