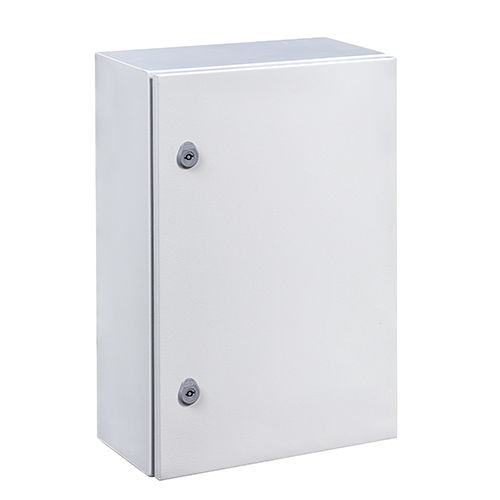

<p>When selecting a wall-mounting cabinet for industrial applications, it&#39;s essential to consider the technical specifications that ensure durability and reliability. This wall-mounting cabinet is designed with these factors in mind, making it an excellent choice for industrial environments and manufacturing companies.</p><p>Constructed from cold-rolled steel, this cabinet offers robust protection against environmental elements. With an IP66 degree of protection, it effectively safeguards internal components from dust and water ingress. Its NEMA ratings of 1, 4, and 12 further highlight its suitability for various demanding conditions by ensuring resistance to both splashes and impacts.</p><p>The cabinet&#39;s dimensions—500 mm in width, 700 mm in height, and 200 mm in depth—provide ample space while maintaining a compact profile suitable for surface mounting. The usable internal space measures 650 mm in height by 450 mm in width by 179 mm in depth, allowing for efficient organization of equipment. Additionally, the mounting plate size is optimized at 450 mm high by 670 mm wide with a thickness of 2 mm to accommodate various installation needs.</p><p>This product supports rated operational voltages up to 1000 VAC or 1500 VDC. It stands out with its impressive maximum load capacities: up to 275 kg overall cabinet load capacity, a door load of up to 25 kg, and a mounting plate capable of supporting up to 250 kg.</p><p>In terms of design features, the single/double reversible door enhances accessibility while the lock system—a combination of a double-bit lock and a two-point locking mechanism—ensures security. The light grey RAL7035 finish not only provides aesthetic appeal but also includes UV protection due to its hardened polyester paint coating over primer.</p><p>The ambient temperature range for this cabinet spans from -25&#176;C to +60&#176;C which assures performance across diverse climates. Rated impact resistance at IK10 confirms its robustness against mechanical impacts.</p><p>Standards compliance is another key aspect; this cabinet meets Directive 2014/35/EU as well as IEC standards (61439-1 &amp; IEC62208) alongside UL508A certification—providing reassurance regarding safety and quality benchmarks.</p><p>Weighing approximately 21.8 kg without compromising on strength or functionality makes handling easier during installation processes where wall fixing dimensions are specified at both height (260mm) &amp; width (260mm). Cable entry dimensions stand at an accommodating size too:125mm high x685mm wide facilitating seamless cabling management through polyurethane gaskets adding extra sealing efficiency against external factors like moisture penetration etc.,</p><p>In summary whether you’re looking after sensitive electronic systems needing extra care from harsh surroundings—or simply require reliable long-term enclosure solutions within your facility’s infrastructure setup—you can count on this highly versatile yet sturdy option delivering peace-of-mind knowing all bases covered securely meeting expectations every time!</p>
