Product Code: MSB606030G

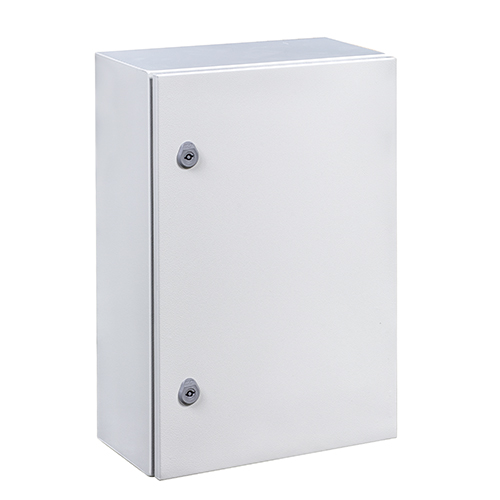

The mild steel enclosure is coated with a grey RAL7035 polyester powdercoat, making it resistant to corrosion. It has an IP66 rating, indicating its high level of protection against dust and water. The single door can be opened up to 110 degrees and is reversible for convenience. It is secured with two metal 5mm double bit locks and supported by two hinges. The enclosure features an injected polyurethane sealing gasket, ensuring a tight seal. It has a cable entry size of 140x500 for easy installation and maintenance. The dimensions of the enclosure are 600mm in height, 600mm in width, and 300mm in depth.

Brand	IDE
Ambient Temperature Range (°C)	-25 to +60
Application	Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Cable Entry (mm)	125H x 485W
Certifications	UL508A
Colour	RAL 7035
Customs Tariff Number	85.38.10.00
Degree of Protection	IP66
Dimensions (mm)	600H x 600W x 300D
Directive	2014/35/EU
Door Profiles	2
Door Type	Single
EAN	8431044490755
ETIM 8.0	EC000261
Finish	Coated with primer, and hardened polyester paint, textured, with UV protection
Installation	Surface
Lock Type	5-mm double-bit lock - Two 1-point lock
Material	Cold-rolled steel EN 10130+A1
Maximum Cabinet Load (kg)	275
Maximum Door Load (kg)	25
Maximum Mounting Plate Load (kg)	250
Maximum Operational Voltage (V)	1000 AC / 1500 DC
Mounting Plate	With flat mounting plate. 2-mm galvanised sheet steel
Mounting Plate Size (mm)	570W x 550H
NEMA Degree of Protection	NEMA 1, 12, 4
No. of Hinges	2
No. of Locks	2
Product End of Life	It does not require specific recycling operations.
Rated Impact Resistance	IK10
Sealing Gasket	Injected polyurethane sealing gasket
Standards	IEC 62208, IEC 61439-1
Supply	Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied unassembled inside the packaging.
Thickness (mm)	Enclosure: 1.5 Door: 1.5 Cable entry lid: 2
Type of Door	Single opaque door. Reversible
Usable Internal Space (mm)	550H x 550W x 279D
Wall Fixing (mm)	260H x 260W
Weight (kg)	25.5

Metal Enclosures & Accessories

IDE IDE66 ROLLED MILD STEEL SINGLE DOOR WALL MOUNTED ENCLOSURE 600Hx600Wx300Dmm GREY MSB606030G
