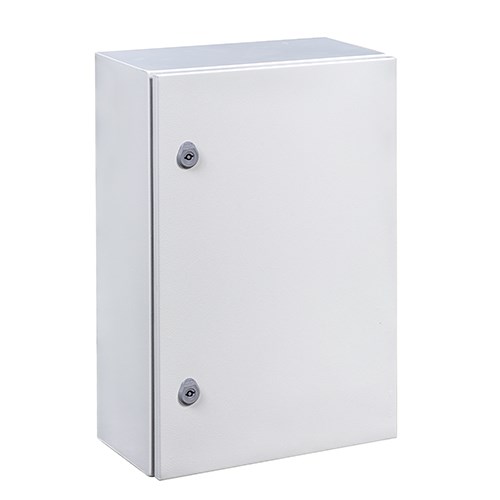

IDE MSB606020G-PT Mild Steel Enclosure Cold Rolled Steel 600W 600H 200D RAL7035 Light Grey IP66

Product Code: MSB606020G-PT

  • IP66 protection for harsh environments
  • Suitable for 1000 VAC and 1500 VDC applications
  • Made from durable cold rolled steel
  • Reversible single/double door design
  • Complies with IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 200 mm
Door Profiles 2
Door Type Single/Double Reversible
Gasket Material Polyurethane
Height 600 mm
Material Cold Rolled Steel
Net Weight 22.4 kg
Number of Hinges 2
Number of Locks 2
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-49, UL 508A
Width 600 mm

Description

<p>When selecting a wall-mounting cabinet for industrial or commercial applications, it&amp;#39;s crucial to consider its technical specifications and compliance with industry standards. This particular cabinet is designed to meet the robust demands of various environments while providing reliable protection for housed components.</p><p>Constructed from cold rolled steel, this wall-mounting cabinet offers exceptional durability and strength. Its light grey RAL 7035 finish not only provides a professional appearance but also enhances resistance to environmental factors. With dimensions of 600 mm in width, 600 mm in height, and 200 mm in depth, it offers ample space for equipment without being overly bulky.</p><p>Designed to operate efficiently within a wide temperature range of -25&amp;#176;C to 60&amp;#176;C, this cabinet can withstand diverse climatic conditions. It supports rated operational voltages up to 1000 VAC and 1500 VDC, making it versatile enough for various electrical setups.</p><p>The IP66 degree of protection ensures that the enclosure is dust-tight and protected against powerful water jets—ideal for harsh industrial settings where exposure to elements is a concern. The door type is reversible single/double, offering flexibility during installation and maintenance.</p><p>Compliance with international standards such as IEC 62208 and IEC 61439-49 guarantees that this enclosure meets essential safety requirements. Additionally, UL 508A approval signifies adherence to North American safety regulations—a critical consideration for installations across different regions.</p><p>One of the notable features of this cabinet is its polyurethane gasket material which enhances sealing performance by providing excellent resistance against moisture ingress. At a net weight of just 22.4 kg, it balances sturdiness with ease of handling during installation.</p><p>In summary, whether you&amp;#39;re outfitting an industrial facility or upgrading commercial infrastructure, choosing this wall-mounting cabinet ensures you have a reliable solution that&amp;#39;s built according to stringent global standards while offering practical design features tailored for demanding environments.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
