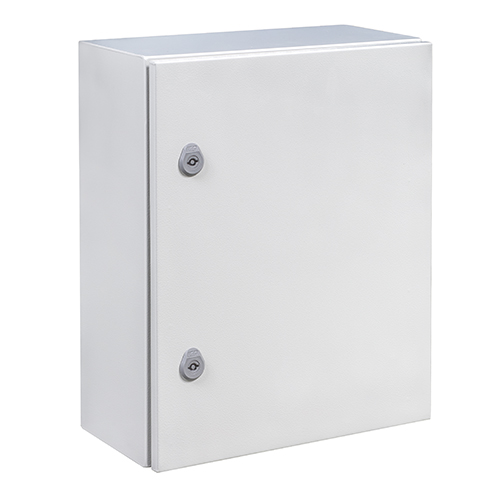

IDE IDE66 ROLLED MILD STEEL SINGLE DOOR WALL MOUNTED ENCLOSURE 600Hx400Wx300Dmm GREY MSB604030G
Zoom
IDE IDE66 ROLLED MILD STEEL SINGLE DOOR WALL MOUNTED ENCLOSURE 600Hx400Wx300Dmm GREY MSB604030G
Product Code: MSB604030G
This mild steel enclosure features a grey RAL7035 polyester powdercoat and has an IP66 rating. It has a single door with a 110-degree reversible opening, equipped with 2 metal 5mm double bit locks and 2 hinges. The enclosure is sealed with an injected polyurethane sealing gasket. It has a cable entry of 140x300 and dimensions of 600Hx400Wx300Dmm.
Technical Specifications
Brand
IDE
Ambient Temperature Range (°C)
-25 to +60
Application
Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Cable Entry (mm)
125H x 285W
Certifications
UL508A
Colour
RAL 7035
Customs Tariff Number
85.38.10.00
Degree of Protection
IP66
Dimensions (mm)
600H x 400W x 300D
Directive
2014/35/EU
Door Profiles
2
Door Type
Single
EAN
8431044490656
ETIM 8.0
EC000261
Finish
Coated with primer, and hardened polyester paint, textured, with UV protection
Installation
Surface
Lock Type
5-mm double-bit lock - Two 1-point lock
Material
Cold-rolled steel EN 10130+A1
Maximum Cabinet Load (kg)
225
Maximum Door Load (kg)
25
Maximum Mounting Plate Load (kg)
200
Maximum Operational Voltage (V)
1000 AC / 1500 DC
Mounting Plate
With flat mounting plate. 2-mm galvanised sheet steel
Mounting Plate Size (mm)
570W x 350H
NEMA Degree of Protection
NEMA 1, 12, 4
No. of Hinges
2
No. of Locks
2
Product End of Life
It does not require specific recycling operations.
Rated Impact Resistance
IK10
Sealing Gasket
Injected polyurethane sealing gasket
Standards
IEC 62208, IEC 61439-1
Supply
Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied unassembled inside the packaging.
Thickness (mm)
Enclosure: 1.2 Door: 1.2 Cable entry lid: 2
Type of Door
Single opaque door. Reversible
Usable Internal Space (mm)
550H x 350W x 279D
Wall Fixing (mm)
260H x 260W
Weight (kg)
16.2
