Colour	RAL 7035
Door Type	Single
No. of Locks	2
Material	Cold-rolled steel EN 10130+A1
No. of Hinges	2
Wall Fixing (mm)	260H x 260W
Cable Entry (mm)	125H x 285W
Maximum Cabinet Load (kg)	225
Maximum Mounting Plate Load (kg)	200
Maximum Door Load (kg)	25
Brand	IDE
EAN	8431044490649
Customs Tariff Number	85.38.10.00
ETIM 8.0	EC000261
Product End of Life	It does not require specific recycling operations.
Ambient Temperature Range (°C)	-25 to +60
Door Profiles	2
Finish	Coated with primer, and hardened polyester paint, textured, with UV protection
Installation	Surface
Lock Type	5-mm double-bit lock - Two 1-point lock
Mounting Plate	With flat mounting plate. 2-mm galvanised sheet steel
Sealing Gasket	Injected polyurethane sealing gasket
Supply	Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied unassembled inside the packaging.
Type of Door	Single opaque door. Reversible
Application	Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Maximum Operational Voltage (V)	1000 AC / 1500 DC
Dimensions (mm)	600H x 400W x 250D
Mounting Plate Size (mm)	570W x 350H
Thickness (mm)	Enclosure: 1.2 Door: 1.2 Cable entry lid: 2
Usable Internal Space (mm)	550H x 350W x 229D
Weight (kg)	15.1
Degree of Protection	IP66
Standards and Approvals	AS/NZS 61439.1:2016
Certifications	UL508A
Rated Impact Resistance	IK10
NEMA Degree of Protection	NEMA 1, 12, 4
Directive	2014/35/EU

Metal Enclosures & Accessories

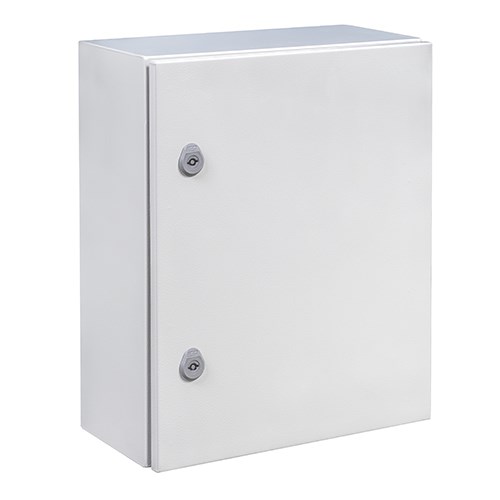

IDE IP66 ROLLED MILD STEEL SINGLE DOOR WALL MOUNTED ENCLOSURE 600Hx400Wx250Dmm GREY MSB604025G
