IPD MSB507025G MS. ENCLOSURE WITH SINGLE DOOR GREY IP66

Product Code: MSB507025G

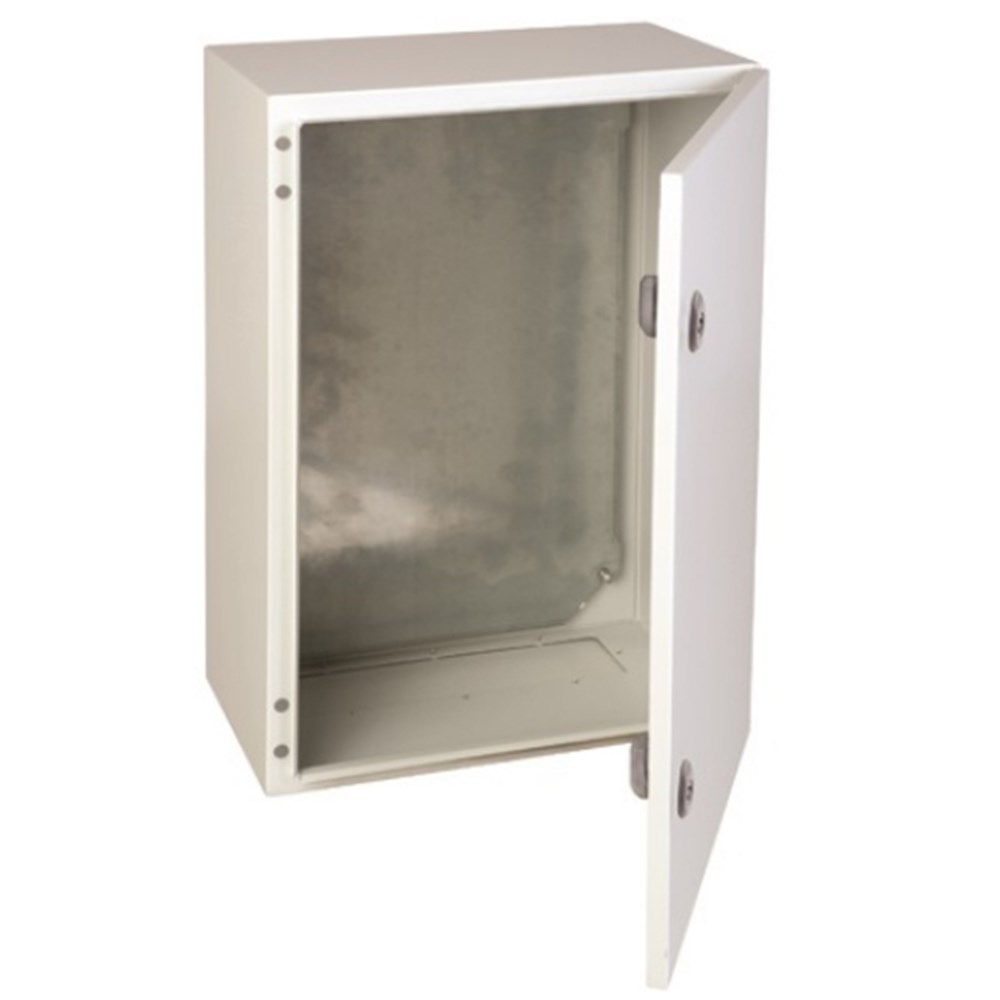

This mild steel enclosure features a grey RAL7035 polyester powdercoat and has an IP66 rating. It has a single door with a 110-degree reversible opening, equipped with two metal 5mm double bit locks and two hinges. The enclosure is sealed with an injected polyurethane sealing gasket. It has a cable entry size of 140x500 and dimensions of 500Hx700Wx250Dmm.

Technical Specifications

Brand IPD
Colour Grey, RAL 7035
Degree of Protection IP66
Dimensions (mm) 500H x 700W x 250D
Door Type Single
Material Mild Steel
Mounting Plate Size (mm) 470W x 650H
No. of Hinges 2
No. of Locks 2
Standards and Approvals AS/NZS 61439.1:2016
Weight (kg) 22.1
