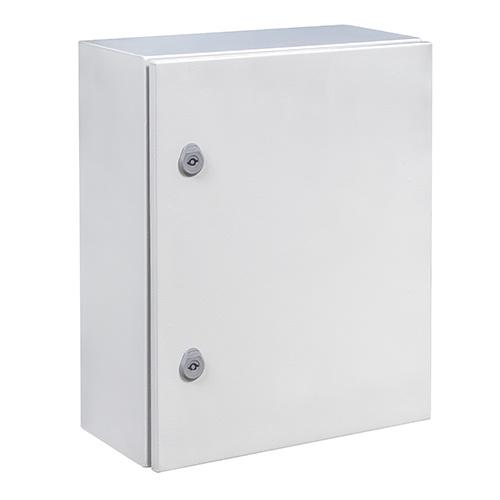

<p>When it comes to selecting the right wall-mounting cabinet for industrial applications, a comprehensive understanding of specifications and standards is crucial. This robust wall-mounting cabinet offers an impressive blend of durability and functionality, making it an excellent choice for professionals in need of reliable enclosures.</p><p>Constructed from cold rolled steel, this cabinet provides exceptional strength and resilience. Its light grey RAL 7035 finish not only gives it a sleek appearance but also enhances its resistance to environmental factors thanks to a hardened polyester paint coating with UV protection. The cabinet&#39;s dimensions are practical for various installations, measuring 500 mm in width, height, and 200 mm in depth.</p><p>Engineered to withstand challenging environments, the cabinet boasts an IP66 degree of protection. This ensures superior defense against dust ingress and powerful water jets from any direction. Additionally, its NEMA ratings—NEMA 1, 4, and 12—affirm its suitability for use in industrial settings where exposure to dust, splashes, or impacts is common.</p><p>The cabinet is rated for operational voltages up to 1000 VAC or 1500 VDC. It supports a maximum load capacity of up to 225 kg overall with specific limits on door (25 kg) and mounting plate loads (200 kg). The mounting plate itself measures at 450 mm high by 470 mm wide with a thickness of 2 mm.</p><p>For ease of installation and maintenance, the unit features surface mounting type along with well-defined wall fixing dimensions (260 mm H x 260 mm W). Cable management is facilitated through a designated entry point measuring 125 mm high by 385 mm wide.</p><p>Inside the enclosure lies usable internal space sized at approximately 450 mm high by 450 mm wide by179mm deep—ample room for housing essential equipment securely behind its single/double reversible door configuration. The doors are secured using a reliable locking system comprising a standard double-bit lock complemented by one two-point lock mechanism ensuring safety without compromising accessibility.</p><p>This product complies with key standards such as Directive2014/35/EU IEC61439-1 IEC62208and UL508A offering peaceof mind regarding quality assurance across different regions including Australia.The ambient temperature range (-25&#176;Cto60&#176;C) further underscoresits adaptability under varying conditions makingit idealfor manufacturing companies requiringhighprotection levelsagainst external elements.Its impact resistance ratingof IK10 highlightsits abilityto endure mechanical stress often encounteredinindustrialenvironments.All these attributes combined make this wall-mountedcabinetan invaluable assetforyour technicalrequirements ensuring both reliabilityand longevityin demandingsettings</p>
