Product Code: MSB403020G

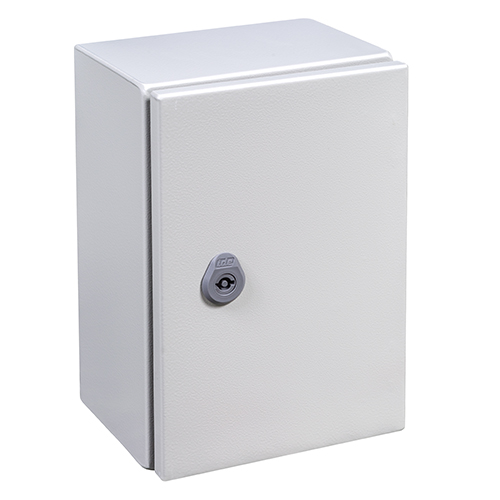

The mild steel enclosure is coated with a grey RAL7035 polyester powdercoat, making it resistant to corrosion. It has an IP66 rating, indicating its high level of protection against dust and water ingress. The single door can be opened up to 110 degrees and is reversible for convenience. It features a metal 5mm double bit lock and two hinges for secure closure. The injected polyurethane sealing gasket ensures a tight seal to prevent any moisture or dust from entering the enclosure. The cable entry measures 140x230, providing ample space for cables to pass through. With dimensions of 400Hx300Wx200Dmm, this enclosure offers sufficient space for housing various equipment or components.

Brand	IDE
Ambient Temperature Range (°C)	-25 to +60
Application	Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Cable Entry (mm)	125H x 215W
Certifications	UL508A
Colour	RAL 7035
Customs Tariff Number	85.38.10.00
Degree of Protection	IP66
Dimensions (mm)	400H x 300W x 200D
Directive	2014/35/EU
Door Profiles	2
Door Type	Single
EAN	8431044490328
ETIM 8.0	EC000261
Finish	Coated with primer, and hardened polyester paint, textured, with UV protection
Installation	Surface
Lock Type	5-mm double-bit lock - One 1-point lock
Material	Cold-rolled steel EN 10130+A1
Maximum Cabinet Load (kg)	175
Maximum Door Load (kg)	25
Maximum Mounting Plate Load (kg)	150
Maximum Operational Voltage (V)	1000 AC / 1500 DC
Mounting Plate	With flat mounting plate. 2-mm galvanised sheet steel
Mounting Plate Size (mm)	370W x 250H
NEMA Degree of Protection	NEMA 1, 12, 4
No. of Hinges	2
No. of Locks	1
Product End of Life	It does not require specific recycling operations.
Rated Impact Resistance	IK08
Sealing Gasket	Injected polyurethane sealing gasket
Standards	IEC 62208, IEC 61439-1
Supply	Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied unassembled inside the packaging.
Thickness (mm)	Enclosure: 1.2 Door: 1.2 Cable entry lid: 2
Type of Door	Single opaque door. Reversible
Usable Internal Space (mm)	350H x 250W x 179D
Wall Fixing (mm)	260H x 260W
Weight (kg)	8.2

Metal Enclosures & Accessories

IDE IP66 ROLLED MILD STEEL SINGLE DOOR WALL MOUNTED ENCLOSURE 400Hx300Wx200Dmm GREY MSB403020G

Product Code: MSB403020G
