Product Code: MSB302015G

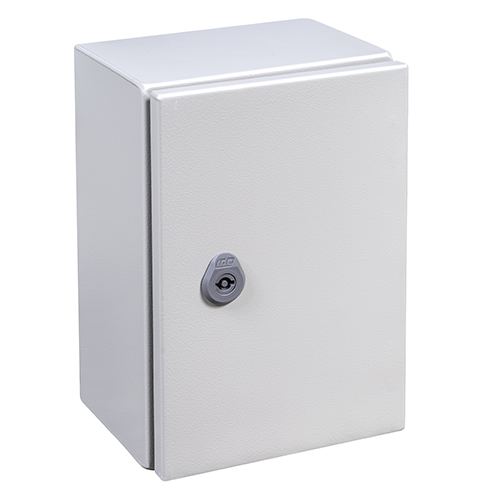

This mild steel enclosure is coated with a grey RAL7035 polyester powdercoat, making it resistant to corrosion. It has an IP66 rating, ensuring protection against dust and water ingress. The single door can be opened up to 110 degrees and is reversible for convenience. It is secured with a metal 5mm double bit lock and two hinges for added durability. The enclosure features an injected polyurethane sealing gasket, providing a tight seal to protect the contents inside. With cable entry measuring 80x150, it allows for easy installation of cables. The dimensions of the enclosure are 300mm in height, 200mm in width, and 150mm in depth.

Brand	IDE
Ambient Temperature Range (°C)	-25 to +60
Application	Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Cable Entry (mm)	65H x 120W
Certifications	UL508A
Colour	RAL 7035
Customs Tariff Number	85.38.10.00
Degree of Protection	IP66
Dimensions (mm)	300H x 200W x 150D
Directive	2014/35/EU
Door Profiles	1
Door Type	Single
EAN	8431044490168
ETIM 8.0	EC000261
Finish	Coated with primer, and hardened polyester paint, textured, with UV protection
Installation	Surface
Lock Type	5-mm double-bit lock - One 1-point lock
Material	Cold-rolled steel EN 10130+A1
Maximum Cabinet Load (kg)	150
Maximum Door Load (kg)	25
Maximum Mounting Plate Load (kg)	125
Maximum Operational Voltage (V)	1000 AC / 1500 DC
Mounting Plate	With flat mounting plate. 2-mm galvanised sheet steel
Mounting Plate Size (mm)	270W x 150H
NEMA Degree of Protection	NEMA 1, 12, 4
No. of Hinges	2
No. of Locks	1
Product End of Life	It does not require specific recycling operations.
Rated Impact Resistance	IK08
Sealing Gasket	Injected polyurethane sealing gasket
Standards	IEC 62208, IEC 61439-1
Supply	Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied unassembled inside the packaging.
Thickness (mm)	Enclosure: 1.2 Door: 1.2 Cable entry lid: 2
Type of Door	Single opaque door. Reversible
Usable Internal Space (mm)	250H x 150W x 129D
Wall Fixing (mm)	210H x 160W
Weight (kg)	4.2
