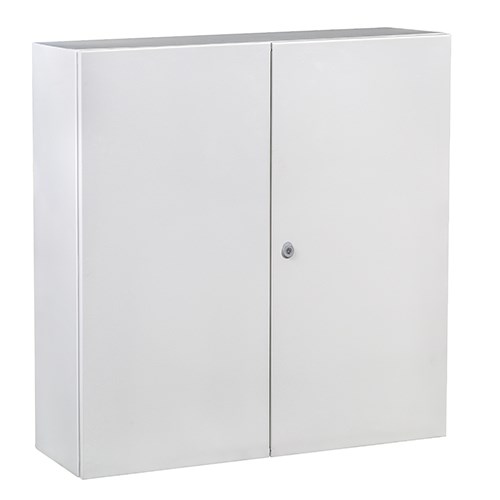

IDE MSB141240DDG Mild Steel Enclosure Cold Rolled Steel 1200W 1400H 400D RAL7035 Light Grey IP55

Product Code: MSB141240DDG

  • Wall-mounting cabinet for secure installations
  • Handles up to 1000 VAC, 1500 VDC
  • IP55 protection against dust and water
  • Made from durable cold rolled steel
  • Double reversible door for flexible access
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Light Grey RAL 7035
Degree of Protection IP55
Depth 400 mm
Door Profiles 4
Door Type Double Reversible
Gasket Material Polyurethane
Height 1400 mm
Material Cold Rolled Steel
Number of Hinges 6
Number of Locks 3
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-1, UL 508A
Width 1200 mm

Description

<p>When selecting an industrial wall-mounting cabinet, it&amp;#39;s crucial to consider factors such as durability, protection, and compliance with industry standards. This particular model offers a robust solution for various commercial and industrial applications. Constructed from cold rolled steel, it ensures strength and resilience, making it suitable for demanding environments.</p><p>The cabinet features a rated operational voltage of 1000 VAC and 1500 VDC, accommodating a wide range of electrical installations. Its IP55 degree of protection signifies that the enclosure is dust-protected and resistant to water jets from any direction. This makes it ideal for environments where exposure to dust or moisture could be a concern.</p><p>Dimensions are also key when selecting an enclosure. With a width of 1200 mm, height of 1400 mm, and depth of 400 mm, this cabinet provides ample space for housing equipment while maintaining a compact form factor suitable for wall mounting. The light grey RAL 7035 finish not only offers an aesthetically pleasing appearance but also blends seamlessly into most industrial settings.</p><p>Temperature tolerance is another significant consideration in choosing the right cabinet. This model operates effectively in ambient temperatures ranging from -25 to 60 degrees Celsius, ensuring reliability in both extreme cold and hot conditions.</p><p>Compliance with international standards is essential for safety and interoperability. This cabinet meets IEC 62208 and IEC 61439-1 standards as well as UL 508A certification, confirming its suitability for global use across various regulatory landscapes.</p><p>The double reversible door design adds versatility by allowing installation flexibility based on spatial requirements or access preferences. Additionally, the polyurethane gasket material enhances sealing performance against environmental ingress while maintaining elasticity over time.</p><p>This wall-mounting cabinet combines practical design with robust construction to meet diverse technical needs without compromising on quality or compliance.</p>
