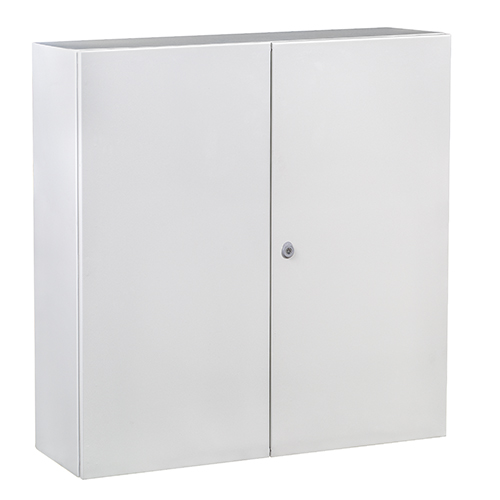

IDE MSB121040DDG Mild Steel Enclosure Cold Rolled Steel 1000W 1200H 400D RAL7035 Light Grey IP66

Product Code: MSB121040DDG

  • Wall-mounting cabinet with IP66 protection
  • Supports 1000 VAC, 1500 VDC operational voltage
  • Made from durable cold rolled steel
  • Double reversible door for flexible access
  • Complies with IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 400 mm
Door Profiles 4
Door Type Double Reversible
Gasket Material Polyurethane
Height 1200 mm
Material Cold Rolled Steel
Number of Hinges 6
Number of Locks 3
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-1, UL 508A
Width 1000 mm

Description

<p>When it comes to selecting a reliable wall-mounting cabinet for your industrial or commercial needs, this robust unit stands out with its impressive specifications and compliance with international standards. Designed to accommodate both AC and DC applications, it offers rated operational voltages of up to 1000 VAC and 1500 VDC, making it versatile for various electrical setups.</p><p>Constructed from cold rolled steel, this cabinet ensures durability and strength while maintaining a sleek appearance in light grey RAL 7035. Its dimensions—1000 mm in width, 1200 mm in height, and 400 mm in depth—provide ample space for housing essential equipment without compromising on structural integrity.</p><p>One of the standout features is its IP66 degree of protection. This high rating guarantees that the cabinet is dust-tight and protected against powerful water jets, making it suitable for harsh environments where exposure to elements is a concern. Whether you&amp;#39;re dealing with dust-laden areas or locations prone to heavy rainfall, this cabinet will keep your components safe.</p><p>The ambient temperature range of -25 to 60 degrees Celsius further emphasizes its adaptability across different climates. Whether it&amp;#39;s installed in cooler regions or warmer zones, the cabinet maintains performance without faltering due to temperature fluctuations.</p><p>For ease of access and installation flexibility, the double reversible door design proves invaluable. This feature allows you to configure the doors according to your spatial requirements while ensuring secure closure thanks to high-quality polyurethane gaskets that effectively seal out contaminants.</p><p>Adhering strictly to established standards like IEC 62208, IEC 61439-1, and UL 508A ensures that this wall-mounting cabinet meets rigorous safety and performance criteria recognized globally. These certifications provide peace of mind by affirming that the product adheres to industry norms for construction and operation.</p><p>In summary, this wall-mounting cabinet combines durability with versatility through its thoughtful design elements such as material choice, protective ratings, temperature resilience, door configuration options,and adherence to international standards,making it an ideal choice for professionals seeking reliability coupled with functionality in their technical installations.</p>
