Product Code: MSB121030G

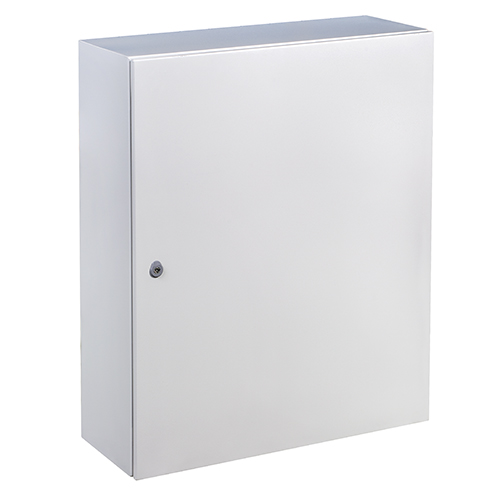

This mild steel enclosure is coated with a grey RAL7035 polyester powdercoat, making it resistant to corrosion. It has an IP66 rating, ensuring protection against dust and water ingress. The single door can be opened up to 110 degrees and is reversible for convenience. It features a 3-point locking rod and 3 hinges for secure closure. The injected polyurethane sealing gasket provides additional protection against environmental elements. The cable entry measures 140x900, allowing for easy installation of cables. The dimensions of the enclosure are 1200mm in height, 1000mm in width, and 300mm in depth.

Brand	IDE
Ambient Temperature Range (°C)	-25 to +60
Application	Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Cable Entry (mm)	125H x 885W
Certifications	UL508A
Colour	RAL 7035
Customs Tariff Number	85.38.10.00
Degree of Protection	IP66
Dimensions (mm)	1200H x 1000W x 300D
Directive	2014/35/EU
Door Profiles	4
Door Type	Single
EAN	8431044491684
ETIM 8.0	EC000261
Finish	Coated with primer, and hardened polyester paint, textured, with UV protection
Installation	Surface
Lock Type	5-mm double-bit lock - One 3-point lock
Material	Cold-rolled steel EN 10130+A1
Maximum Cabinet Load (kg)	390
Maximum Door Load (kg)	40
Maximum Mounting Plate Load (kg)	350
Maximum Operational Voltage (V)	1000 AC / 1500 DC
Mounting Plate	With flat mounting plate. 2-mm galvanised sheet steel
Mounting Plate Size (mm)	1170W x 950H
NEMA Degree of Protection	NEMA 1, 12, 4
No. of Hinges	3
No. of Locks	3 points
Product End of Life	It does not require specific recycling operations.
Rated Impact Resistance	IK10
Sealing Gasket	Injected polyurethane sealing gasket
Standards	IEC 62208, IEC 61439-1
Supply	Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied assembled inside the cabinet.
Thickness (mm)	Enclosure: 1.5 Door: 1.5 Cable entry lid: 2
Type of Door	Single opaque door. Reversible
Usable Internal Space (mm)	1150H x 950W x 279D
Wall Fixing (mm)	1160H x 960W
Weight (kg)	70.8
