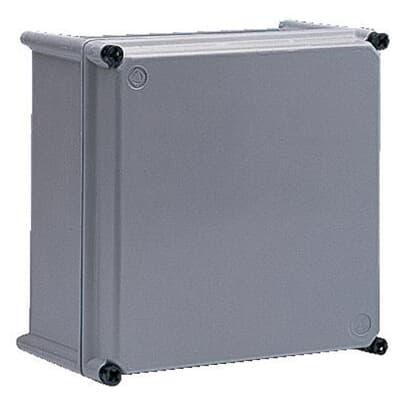

ABB APO11 MODULAR POLYESTER BOX WITH GREY COVER IP67

Product Code: APO11

The modular glass fibre reinforced polyester box is designed for harsh external applications such as mining, shipyards, and marine/oil environments. It is made of grey RAL7035 glass fibre reinforced polyester with a grey polyester cover that has an IP67 rating. The box has a high temperature rating of up to 70°C continuous temperature and is maintenance-free and corrosion resistant. It can be mounted on both walls and poles and has dimensions of 603Hx372Wx175Dmm.

Technical Specifications

Brand ABB
Colour Grey, RAL 7035
Cover Style Closed
Degree of Protection IP67
Dimensions (mm) 603H X 372W X 175D
Material Plastic
Mounting Type Surface Mounted (Plaster)
Thickness (mm) 3.5 - Cabinet Plate, 3 - Door Plate
