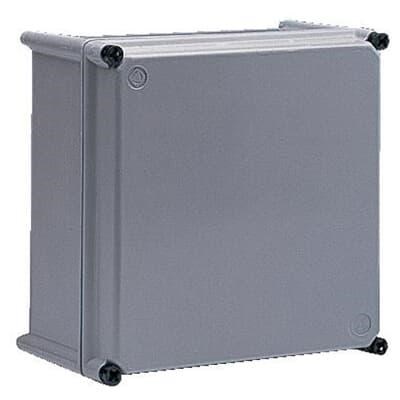

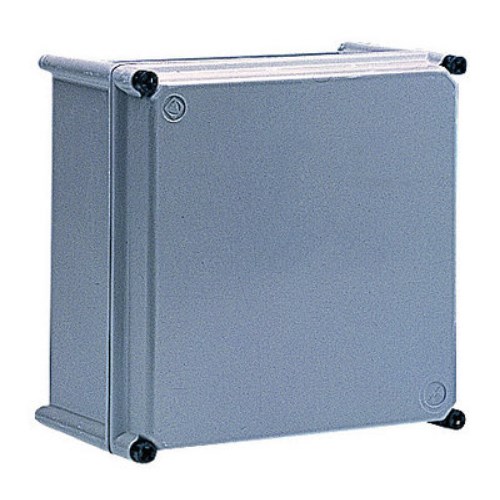

ABB APO41 MODULAR POLYESTER BOX WITH GREY COVER IP67

Product Code: APO41

The modular glass fibre reinforced polyester box is designed for harsh external applications such as mining, shipyards, and marine/oil environments. It is made of grey RAL7035 glass fibre reinforced polyester with a grey polyester cover, providing a high level of protection with an IP67 rating. The box has a high temperature rating of up to 70°C for continuous temperature use. It is maintenance-free and corrosion resistant. The dimensions of the box are 302Hx302Wx175Dmm, making it suitable for both wall and pole mounting.

Technical Specifications

Brand ABB
Colour Grey, RAL 7035
Cover Style Closed
Degree of Protection IP67
Dimensions (mm) 302H X 302W X 175D
Material Plastic
Mounting Type Surface Mounted (Plaster)
Thickness (mm) 3.5 - Cabinet Plate, 3 - Door Plate
