Product Code: IC694MDL250

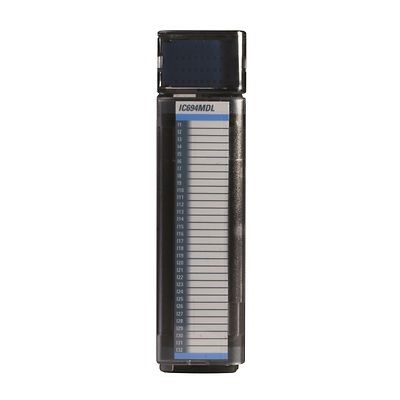

The Emerson RX3i AC Voltage Input module is a versatile component of the RX3i series, designed for automation systems. This chassis-based module supports 8 to 32 points, configurable as group or isolated, and accommodates both positive and negative logic, as well as high-density configurations. It boasts an array of network interfaces including PROFINET, PROFIBUS DP, Modbus TCP, EGD, and CMX, ensuring seamless integration into various industrial networks. Engineered for on-panel or DIN rail mounting, this PLC is ideal for complex machinery control, intricate process management, motion control tasks, and general automation requirements. With its robust design and flexible options, it's a reliable choice for engineers looking to optimize their automation systems.

Current Consumption	60mA @ 5V DC
Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
No. of Digital Inputs	8
No. of IO	8
Rated Maximum Operational Voltage AC (V)	132
Rated Minimum Operational Voltage AC (V)	0
Brand	Emerson
Communication Protocols	MODBUS, PROFINET, PROFIBUS
Degree of Protection	IP20
Mounting Type	On Panel / DIN Rail
No. of Input Points	16
Rated Supply Voltage AC/DC (V)	120V AC
Series	RX3i
Standards and Approvals	UL 508, equivalent to CSA C22.2 No 142M1987 standard
