Product Code: IC694MDL635

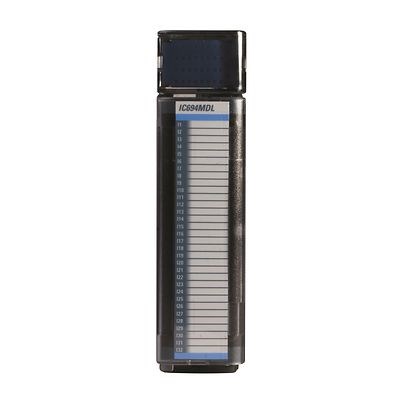

The Emerson RX3i DC Voltage Input module is a versatile component of the RX3i series, designed for automation systems. This chassis-based module offers flexibility with 8 to 32 points that can be configured as group or isolated, catering to both positive and negative logic applications, as well as high-density requirements. It supports a range of network interfaces including PROFINET, PROFIBUS DP, Modbus TCP, EGD, and CMX, ensuring seamless integration into various industrial networks. Ideal for complex machinery, process control, motion control, and general automation tasks, this PLC module can be mounted on-panel or on a DIN rail according to your installation needs. The RX3i DC Voltage Input module by Emerson stands out in the field of automation for its adaptability and robust communication capabilities.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
No. of Digital Inputs	16
No. of IO	16
Rated Maximum Operational Voltage DC (V)	150
Rated Minimum Operational Voltage DC (V)	0
Brand	Emerson
Communication Protocols	MODBUS, PROFINET, PROFIBUS
Degree of Protection	IP20
Mounting Type	On Panel / DIN Rail
No. of Input Points	16
Rated Supply Voltage AC/DC (V)	125V DC
Series	RX3i
Standards and Approvals	UL 508, equivalent to CSA C22.2 No 142M1987 standard

HMI Panels

EMERSON 16PT 125VDC INPUT MODU LE 16PT 125VDC INPUT MODULE IC694MDL635

Product Code: IC694MDL635
