Product Code: IC757CSW12WHMI

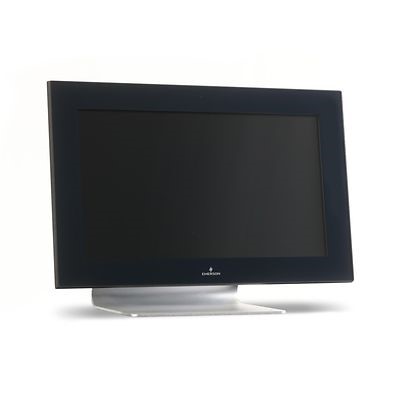

Explore the Emerson 12" Rxi-Web Panel, a cutting-edge operator interface designed for automation systems. This WXGA widescreen display boasts a resolution of 1280 x 800, ensuring clear and sharp visuals in landscape orientation. Equipped with a responsive multi-touch screen, it enhances user interaction with web-hosted HMI applications. The panel is powered by 2GB DDR3L memory and has an internal storage of 4GB eMMC NAND Flash Memory, providing reliable performance for industrial environments. Part of the RXi series, this operator interface seamlessly integrates into your existing automation infrastructure to optimize operations.

Maximum Temperature (°C)	65
Minimum Temperature (°C)	-20
No. of 1GB Ports	1
No. of Ethernet Ports	1
No. of Serial Ports	1
Rated Maximum Operational Voltage DC (V)	28.8
Rated Minimum Operational Voltage DC (V)	19.2
Brand	Emerson
Communication Protocols	EtherNet/IP
Display Screen Size (Inch)	12
Degree of Protection	IP66 (Front) / IP20 (Back)
Dimensions (mm)	329.1W x 226.8H x 65D
Mounting Type	Panel
Series	RXi
Standards and Approvals	ATEX/IECeX

HMI Panels

EMERSON 12" RXI WEB TOUCHPANEL FIREFOX/CHROME WEBPAGE 1-ETH 1-SER 65°C CAP' 10POINT IC757CSW12WHMI
