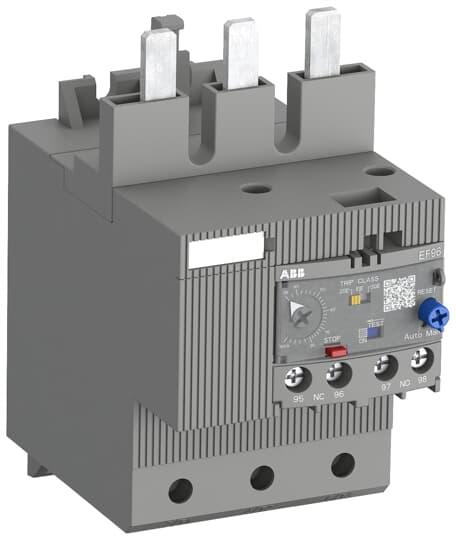

<p>The Electronic Overload Relay is a reliable and efficient solution for safeguarding your electrical systems. Designed to operate seamlessly within industrial and commercial environments, this relay is engineered with precision to ensure optimal performance under varied conditions.</p><p>Operating at a rated voltage of 1000 VAC and supporting a current setting range from 36 to 100 A, this relay is versatile enough for diverse applications. It features a rated current of 0.55 A and operates efficiently across both 50 Hz and 60 Hz frequencies. With minimal power loss of just 0.117 W, it ensures energy efficiency while maintaining robust protection.</p><p>Safety is paramount in its design, highlighted by the rated impulse withstand voltages of both 6 kV and 8 kV, along with a solid insulation voltage rating of 1000 VAC. The contact configuration includes one normally closed (1NC) and one normally open (1NO) contact, offering flexible integration into various circuit designs.</p><p>The trip class options—Class 10E, Class 20E, Class 30E—provide adaptability depending on your specific application requirements. Moreover, the device boasts degrees of protection IP10 and IP20 as well as pollution degree IP3 ratings ensuring reliability even in challenging environments.</p><p>Installation is straightforward thanks to its direct mounting type. Its compact dimensions (70 mm width x131.7 mm height x105.2 mm depth) make it suitable for space-constrained setups without compromising on functionality or accessibility.</p><p>This overload relay supports an operational temperature range between -25&#176;C to +70&#176;C making it resilient against environmental fluctuations while storage temperatures can safely vary from -50&#176;C up to +85&#176;C ensuring longevity when not in use.</p><p>Designed specifically for compatibility with AF80-AF96 contactors this product integrates smoothly into existing systems enhancing operational efficiency without extensive modifications required</p><p>Compliance with international standards such as IEC/EN60947-1 IEC/EN60947-4-1 IEC/EN60947-5-1 UL60947-1 UL60947-4-1 underscores its adherence to stringent quality benchmarks providing peace-of-mind regarding safety performance</p><p>For additional protection short circuit protective devices are supported up-to200A using fuse type gG ensuring further security against unexpected electrical surges</p><p>Electrical connections utilize screw terminals facilitating secure stable setup during installation process Finally automatic reset function adds convenience reducing downtime after fault clearance allowing operations resume swiftly minimizing disruptions</p>
