Design of Control Element	Push Button
Earth Fault Protection	Yes
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Back Side
No. of Auxiliary Change-over Contacts	4
Overload Release Current Setting (A)	1280
Rated Instantaneous Short-Circuit Current - Ii (A)	4800
Brand	ABB
AC Voltage (V)	690
Breaking Capacity (kA)	66 @415V AC
Breaking Capacity 400V AC - Icu (kA)	66
Breaking Capacity 415V AC - Icu (kA)	66
Component Type	Fixed
Current Rating (A)	3200
Degree of Protection	IP30
EAN	8015644756277
Frame	E4.2
G (0.1 to 1 x In) - I4 (A)	320 - 3200
I (1.5 to 15 x In) - I3 (A)	4800 - 48000
Icw (kA/1s) - Short-time Withstand Current Rating	66
Indication	Switched-off Indicator
Iu - Uninterrupted Current Rating (A)	3200
L (0.4 to 1 x In) - I1 (A)	1280 - 3200
No. of Poles	4
Poles	4P
Power Loss (W)	425
Rated Current (A)	3200
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Uninterrupted Current - Iu (A)	3200
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	1920 - 32000
Size of Frame	E4.2
Standards and Approvals	IEC
Terminal Type	HR
Trip Unit	EKIP Touch LSIG
Trip Unit - Electronic	EKIP Touch LSIG
Version	Fixed

Air Circuit Breakers

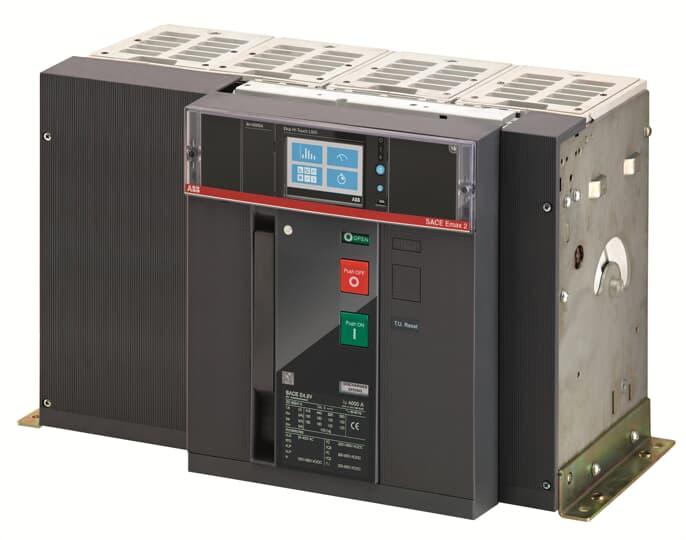

ABB E4.2N 3200 EKIP G TOUCH LSIG 4P F HR 1SDA071777R1
