Design of Control Element	Push Button
Earth Fault Protection	Yes
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
Overload Release Current Setting (A)	1280
Rated Instantaneous Short-Circuit Current - Ii (A)	4800
Brand	ABB
AC Voltage (V)	690
Breaking Capacity (kA)	66 @415V AC
Breaking Capacity 400V AC - Icu (kA)	66
Breaking Capacity 415V AC - Icu (kA)	66
Component Type	Withdrawable
Current Rating (A)	3200
Degree of Protection	IP30
EAN	8015644763435
Frame	E4.2
G (0.1 to 1 x In) - I4 (A)	320 - 3200
I (1.5 to 15 x In) - I3 (A)	4800 - 48000
Icw (kA/1s) - Short-time Withstand Current Rating	66
Indication	Switched-off Indicator
Iu - Uninterrupted Current Rating (A)	3200
L (0.4 to 1 x In) - I1 (A)	1280 - 3200
No. of Poles	3
Poles	3P
Power Loss (W)	743
Rated Current (A)	3200
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Uninterrupted Current - Iu (A)	3200
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	1920 - 32000
Size of Frame	E4.2
Standards and Approvals	IEC
Trip Unit	Ekip DIP LSIG
Trip Unit - Electronic	Ekip DIP LSIG
Version	Withdrawable

Air Circuit Breakers

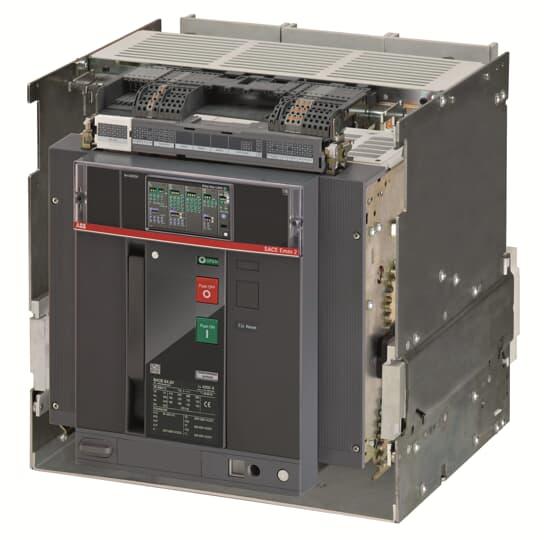

ABB E4.2N 3200 EKIP DIP LSIG 3P WMP 1SDA072493R1
