Design of Control Element	Push Button
Earth Fault Protection	Yes
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
Overload Release Current Setting (A)	640
Rated Instantaneous Short-Circuit Current - Ii (A)	2400
Brand	ABB
AC Voltage (V)	690
Breaking Capacity (kA)	66 @415V AC
Breaking Capacity 400V AC - Icu (kA)	66
Breaking Capacity 415V AC - Icu (kA)	66
Component Type	Withdrawable
Current Rating (A)	1600
Degree of Protection	IP30
EAN	8015644760830
Frame	E1.2
G (0.1 to 1 x In) - I4 (A)	160 - 1600
I (1.5 to 15 x In) - I3 (A)	2400 - 24000
Icw (kA/1s) - Short-time Withstand Current Rating	50
Indication	Switched-off Indicator
Iu - Uninterrupted Current Rating (A)	1600
L (0.4 to 1 x In) - I1 (A)	640 - 1600
No. of Poles	3
Poles	3P
Power Loss (W)	400
Rated Current (A)	1600
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	50
Rated Uninterrupted Current - Iu (A)	1600
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	960 - 16000
Size of Frame	E1.2
Standards and Approvals	IEC
Trip Unit	Ekip DIP LSIG
Trip Unit - Electronic	Ekip DIP LSIG
Version	Withdrawable

Air Circuit Breakers

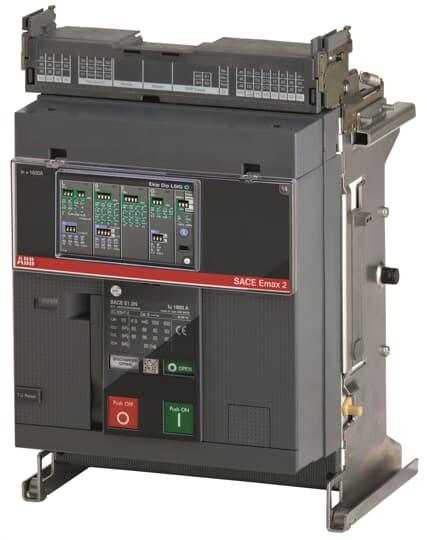

ABB E1.2N 1600 EKIP DIP LSIG 3P WMP 1SDA072233R1
