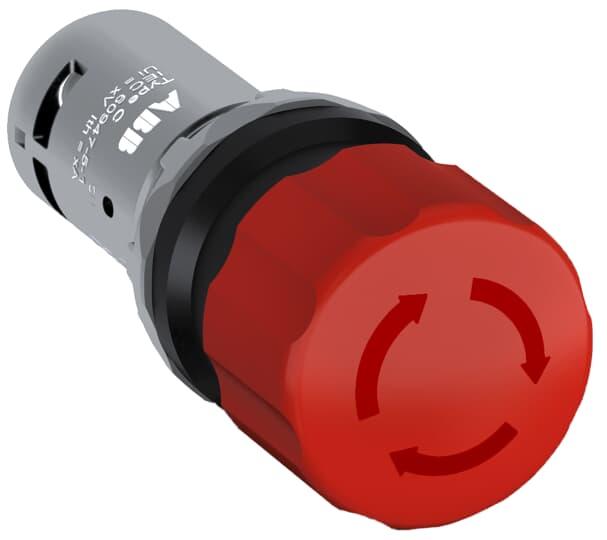

ABB CE3T-10R-11 NON-ILLUMINATED EMERGENCY STOP PUSHBUTTON RED Ã 30MM 1NO/1NC TWIST RELEASE

Product Code: CE3T-10R-11

This Non-Illuminated Emergency Stop Pushbutton is designed for use in emergency situations. It features a red colour and has a 30mm diameter. The pushbutton has a twist release mechanism and is part of the Compact range. It has 1 normally open (NO) contact and 1 normally closed (NC) contact.

Technical Specifications

Brand ABB
Colour Red
Contacts 1NO+1NC
Degree of Protection IP66 (Front), IP20 (Terminals)
Dimensions (mm) 30W x 30H x 73D
Illumination Non-Illuminated
Maximum Operational Voltage AC (V) 300
Maximum Operational Voltage DC (V) 300
Mode of Operation Maintained
Mushroom Diameter (mm) 30
Operational Temperature Range (°C) -25 to +70
Rated Frequency (Hz) 50/60
Rated Operational Current 125V DC (A) 0.2
Rated Operational Current 240V AC (A) 1
Rated Operational Current 24V DC (A) 0.3
Release Method Twist release
