Product Code: E65A36XT4250

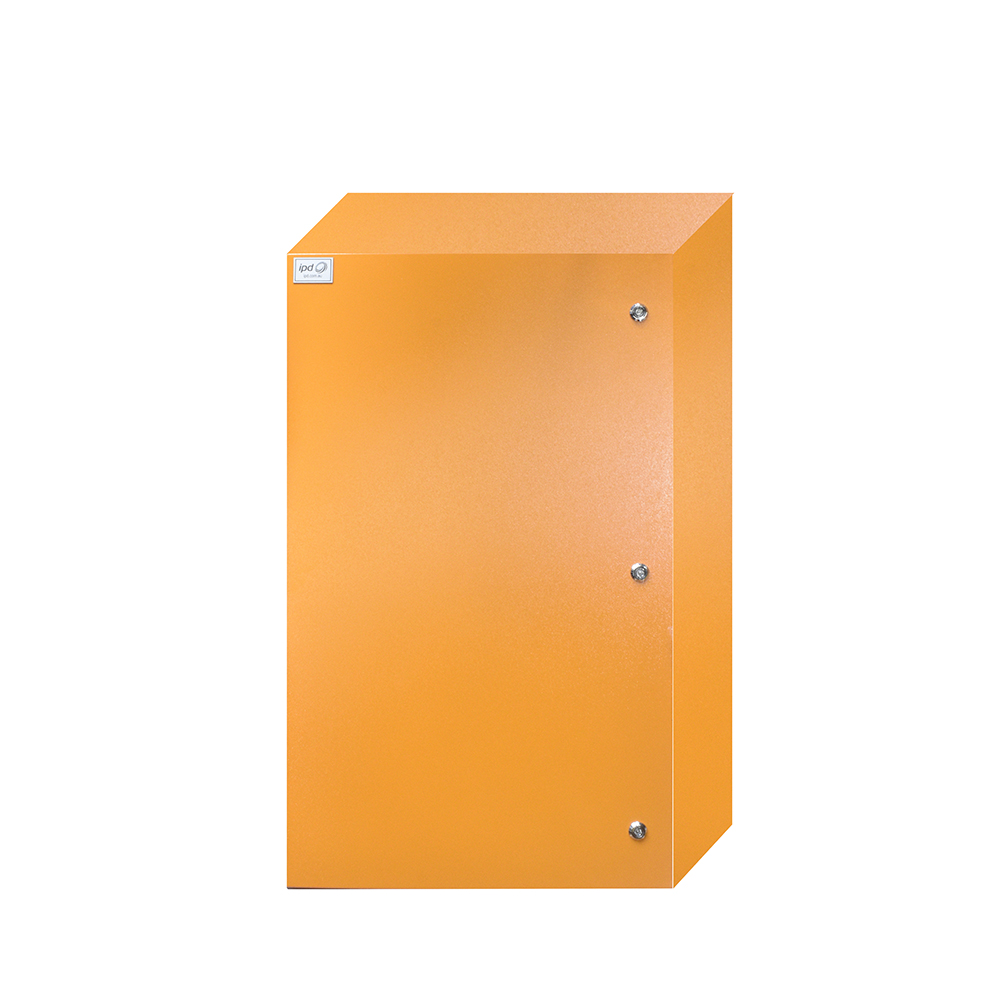

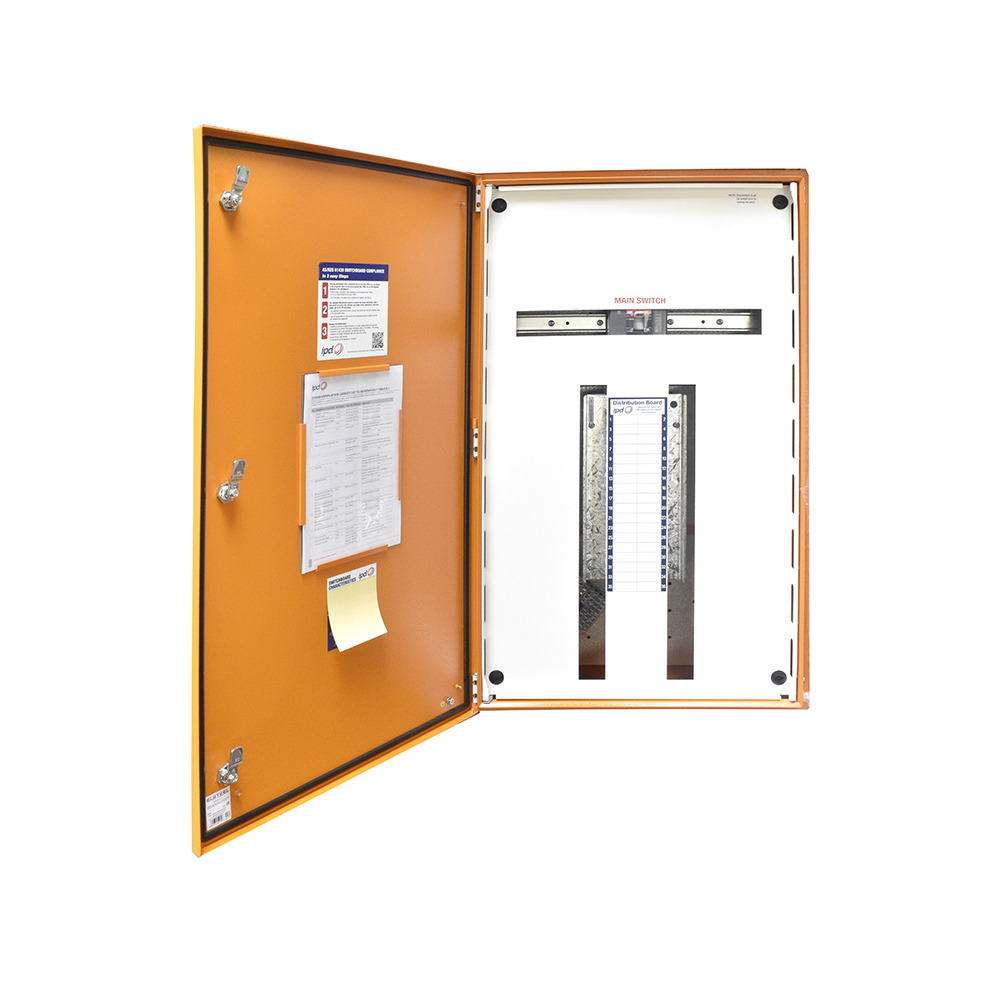

Evolution distribution boards are specifically designed for System pro M S200 range protection devices. These boards are constructed from 1.6mm Mild Steel in a vibrant RAL2000 orange colour. They have an IP65 rating, making them suitable for outdoor applications. The enclosure of the board includes various features such as an XT4N 250A MCCB, a full gland plate on the top and bottom, a 36P encapsulated chassis, metal locks, and a hinged escutcheon. The dimensions of the board are 1000H x 600W x 200Dmm.

Brand	IPD
Colour	Orange, RAL2000
Degree of Protection	IP65
Dimensions (mm)	1000H x 600W x 200D
DIN Accessory Spaces	18
Material	Mild Steel
No. of Locks	3
No. of Poles	36P
Rated Current of Main Switch (A)	250
Type of Main Switch	XT4 MCCB

Evolution Distribution Boards

IPD E65A36XT4250 DB 36P IP65 ORANGE , XT4 MCCB MAIN SWITCH

Product Code: E65A36XT4250

Technical Specifications
