Product Code: E65L24CT125

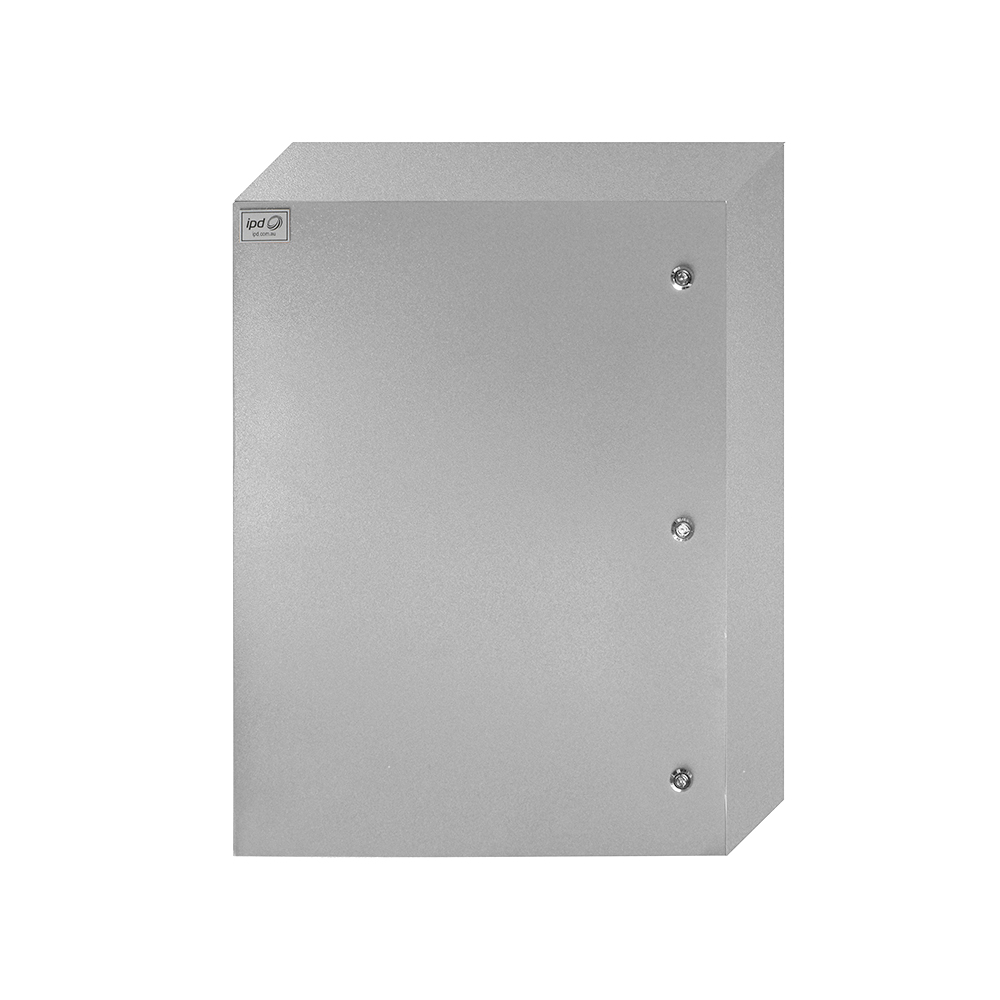

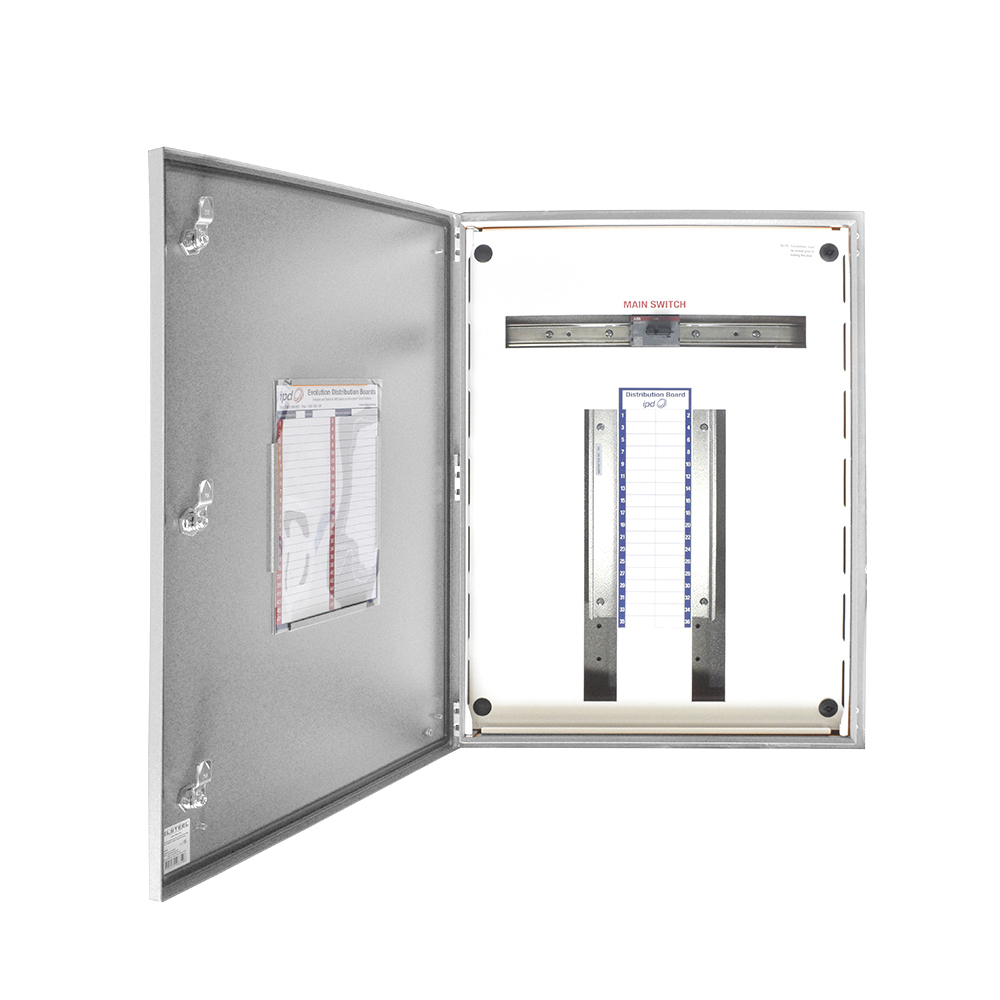

Evolution distribution boards are compact and designed specifically for the System pro M S200 range protection devices. These boards are made from 1.6mm mild steel in a RAL7035 grey colour. They have an IP65 rating, making them suitable for indoor applications. The enclosure of the distribution board includes an OT125 LBS, full gland plate on the top and bottom, a 24P encapsulated chassis, metal locks, and a hinged escutcheon. The size of the board is 600H x 600W x 200Dmm.

Brand	IPD
Colour	Grey, RAL7035
Degree of Protection	IP65
Dimensions (mm)	600H x 600W x 200D
DIN Accessory Spaces	20
Material	Mild Steel
No. of Locks	2
No. of Poles	24P
Rated Current of Main Switch (A)	125
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65L24CT125 COMPACT DB 24P IP65 GREY + OT125 LBS

Product Code: E65L24CT125

Technical Specifications
