Evolution Distribution Boards

IPD E65A18XT4250 DB 18P IP65 ORANGE , XT4 MCCB MAIN SWITCH

Product Code: E65A18XT4250

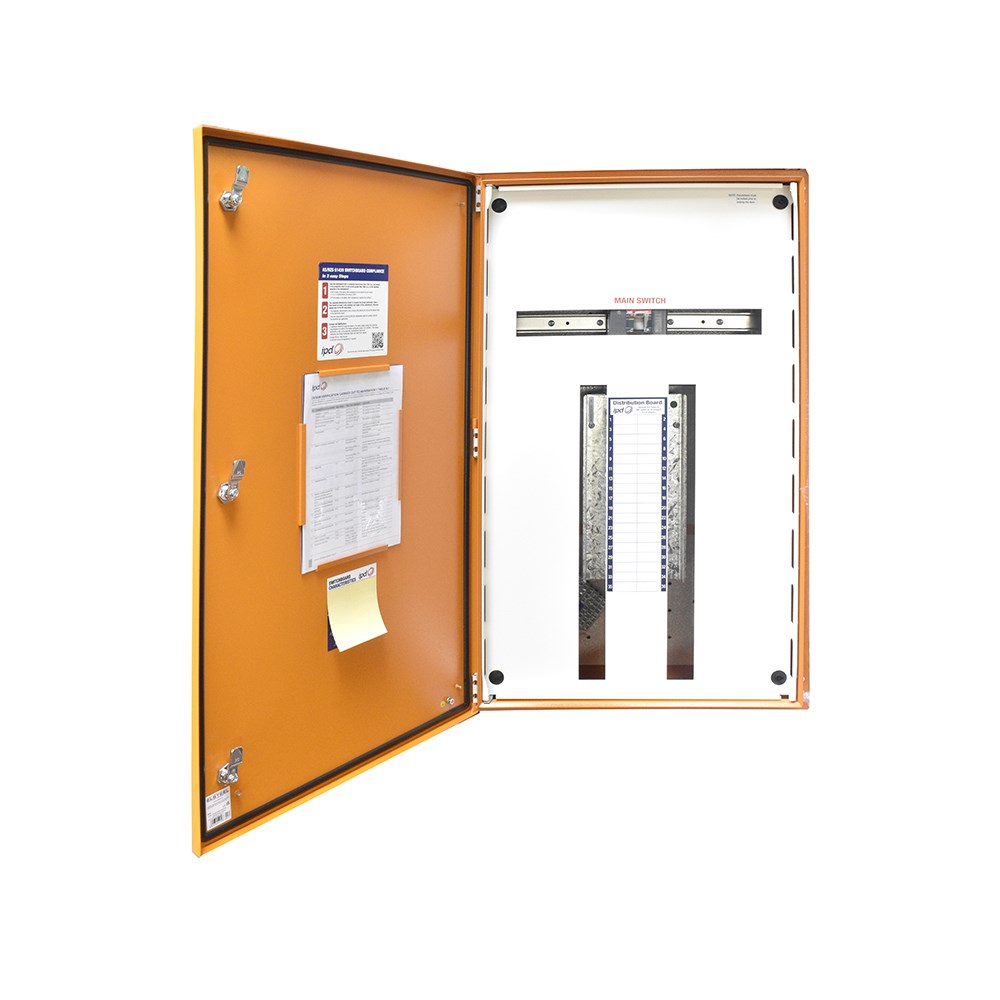

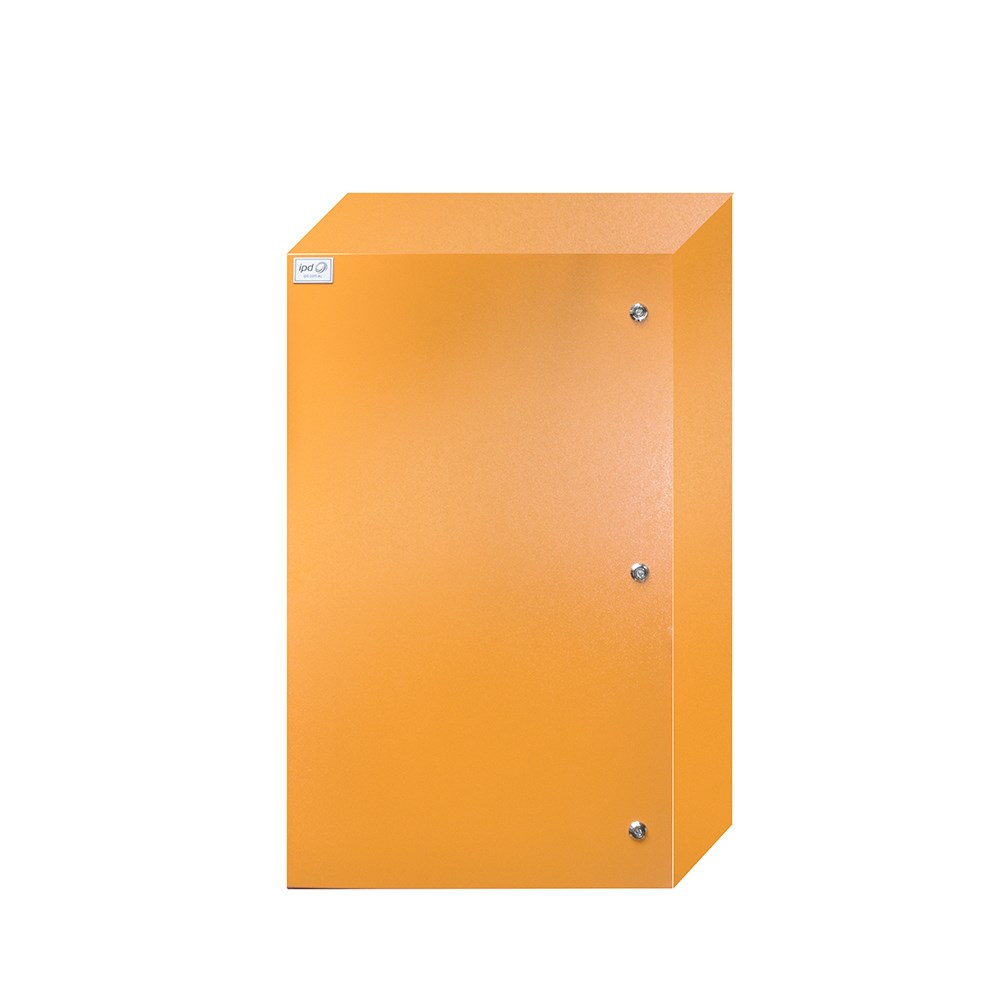

Evolution distribution boards are specifically designed for System pro M S200 range protection devices. These boards are constructed from 1.6mm Mild Steel in an eye-catching RAL2000 orange colour. With an IP65 rating, they are suitable for outdoor applications. The enclosure of the board includes a XT4N 250A MCCB, Full Gland Plate Top & Bottom, 18P encapsulated chassis, metal locks, and a hinged escutcheon. The dimensions of the board are 800H X 600W X 200Dmm.

Technical Specifications

Brand IPD
Colour Orange, RAL2000
Degree of Protection IP65
Dimensions (mm) 800H x 600W x 200D
DIN Accessory Spaces 18
Material Mild Steel
No. of Locks 2
No. of Poles 18P
Rated Current of Main Switch (A) 250
Type of Main Switch XT4 MCCB
