Product Code: E65A12XT4250

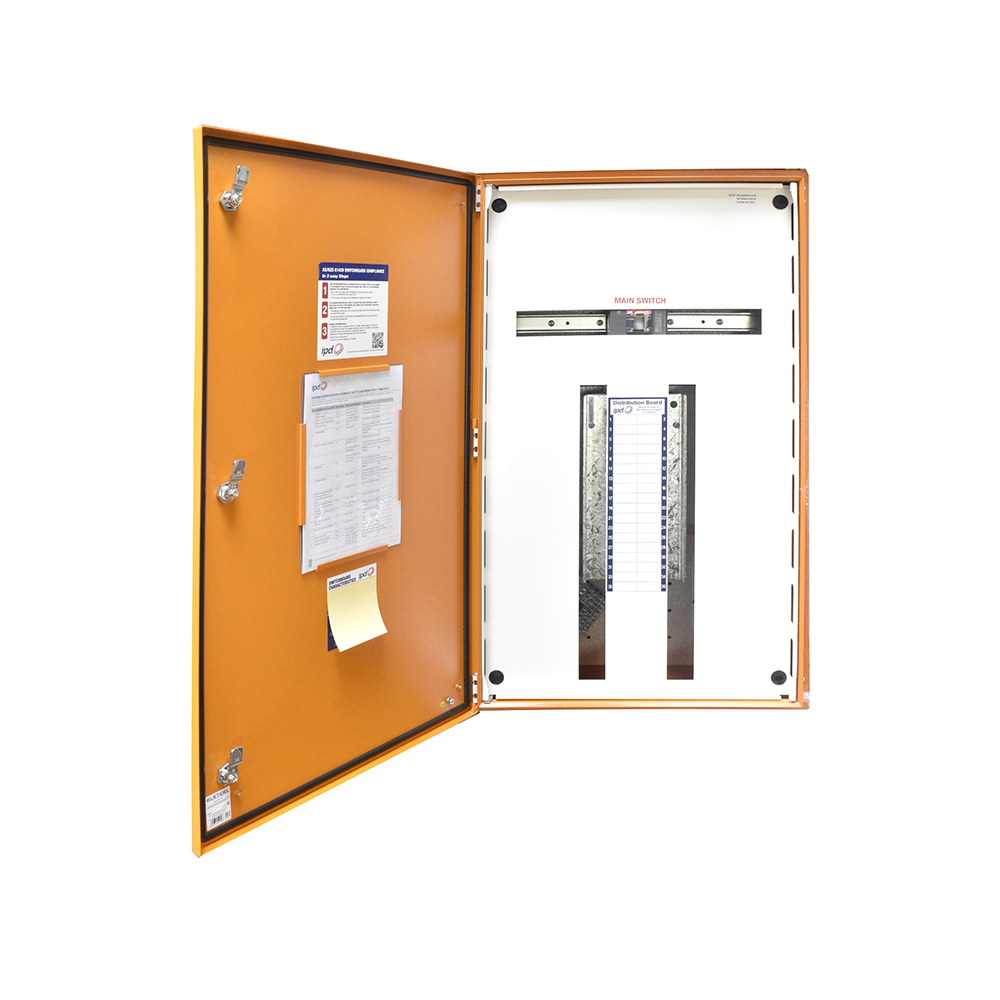

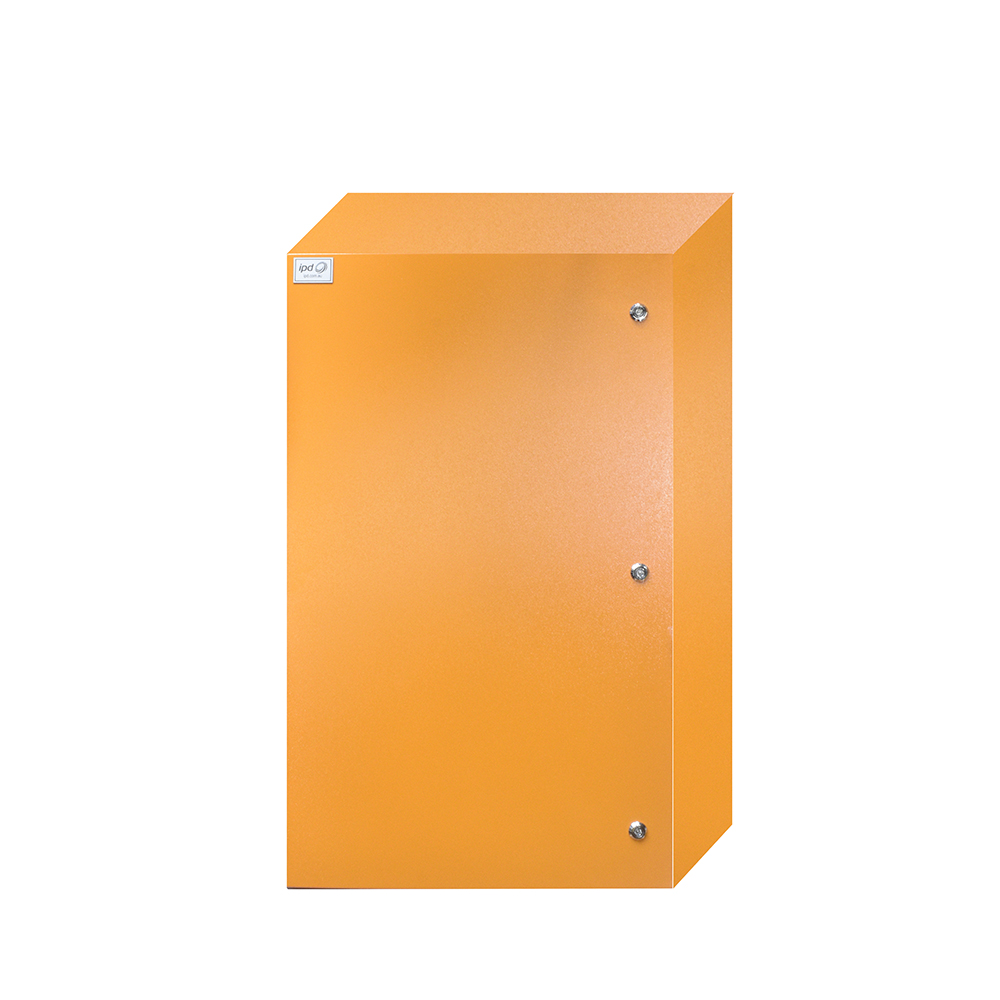

Evolution distribution boards are specifically designed to accommodate System pro M S200 range protection devices. These boards are constructed using 1.6mm thick Mild Steel in an eye-catching RAL2000 orange colour. With an IP65 rating, they are suitable for outdoor applications. The enclosure of the board includes a XT4N 250A MCCB, Full Gland Plate on the top and bottom, a 12P encapsulated chassis, metal locks, and a hinged escutcheon for easy access. The dimensions of the board are 800H x 600W x 200Dmm.

Brand	IPD
Colour	Orange, RAL2000
Degree of Protection	IP65
Dimensions (mm)	800H x 600W x 200D
DIN Accessory Spaces	18
Material	Mild Steel
No. of Locks	2
No. of Poles	12P
Rated Current of Main Switch (A)	250
Type of Main Switch	XT4 MCCB

Evolution Distribution Boards

IPD E65A12XT4250 DB 12P IP65 ORANGE , XT4 MCCB MAIN SWITCH

Product Code: E65A12XT4250

Technical Specifications
