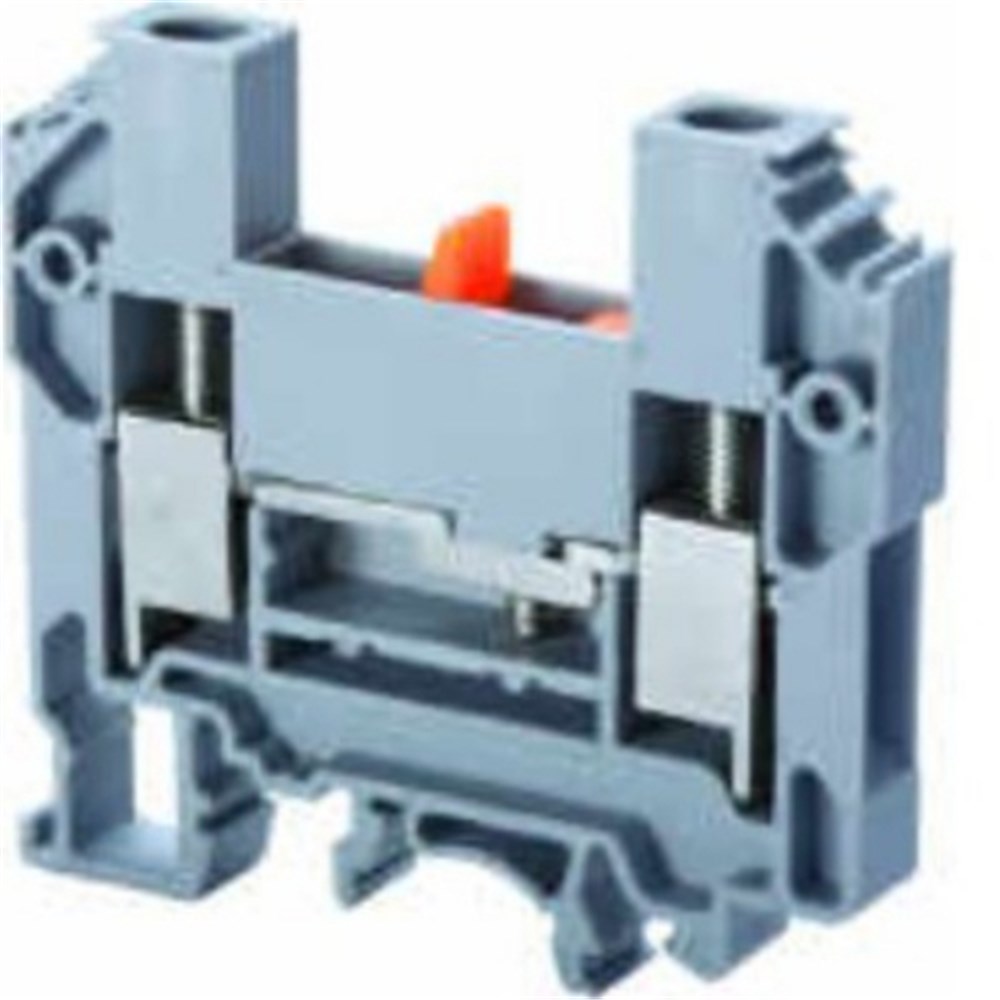

CONNECTWELL CDTTU DISCONNECT & TEST SCREW CLAMP TERMINAL BLOCK 1 IN/1 OUT 800V/57A

The Disconnect & test screw clamp terminal block is designed for 1 in / 1 out connections. It is suitable for stranded conductors with a cross section of 1.5 - 10mm². The terminal block has dimensions of 63mm (L) x 8mm (W) x 58.7mm (H) and comes in the colour grey. It has a maximum voltage rating of 800V and a current rating of 57A. The terminal block can be mounted on Din 32, Din 35, and Din 35-15 Rail.
