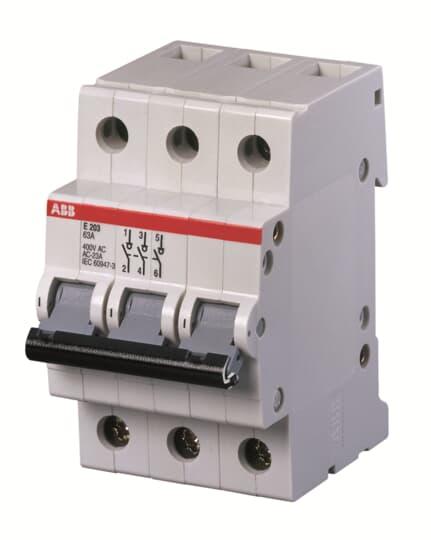

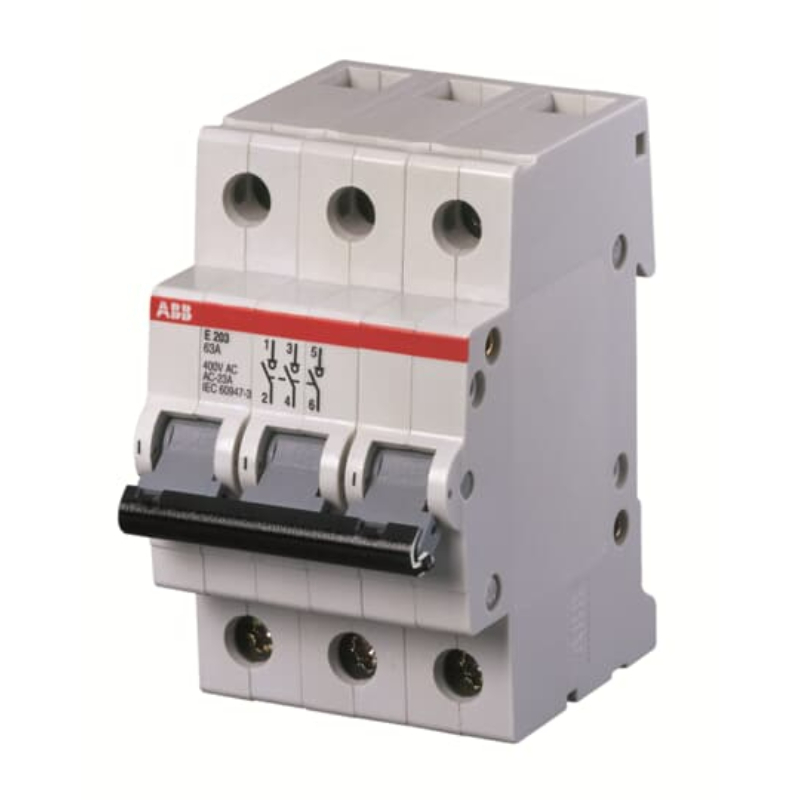

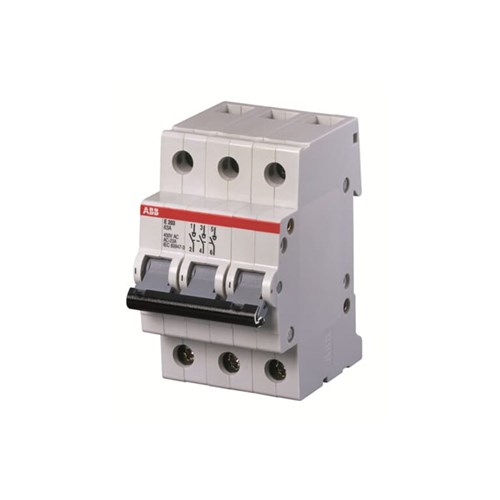

ABB E20380RD SWITCH DISCONNECTOR 3P 80A 230/400VAC

Product Code: E20380RD

The ABB Switch Disconnector is a 3-pole device designed for load break switching and isolation in domestic applications. It has a current rating of 80A and operates at voltages of 230/400VAC. This switch disconnector provides a reliable and efficient solution for controlling electrical circuits in residential settings.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 230/400
Application Domestic
Busbar Cross Section (mm²) ≥ 16
Current Rating (A) 80
DC Voltage (V) 60
Degree of Protection IP10
Dimensions (mm) 85H x 69D x 52.5W
Family E200
Housing Material Grey, RAL 7035
Inc-Rated Conditional Short Circuit Capacity (kA) 25
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
Mounting Type DIN Rail
No. of Poles 3P
Pole Width (mm) 17.5
Poles 3P
Power Loss (W) 2.6/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 25
Rated Current (A) 80
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Operational Voltage AC (V) 230/400
Rated Operational Voltage DC (V) 60
Series E200
Standards and Approvals AS/NZS 60947-3
