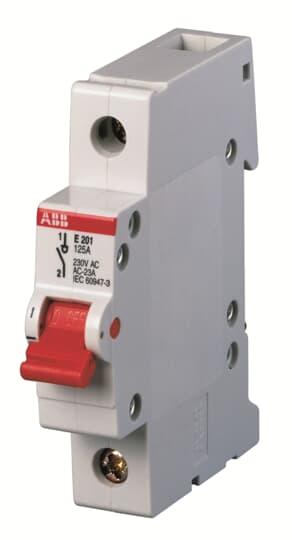

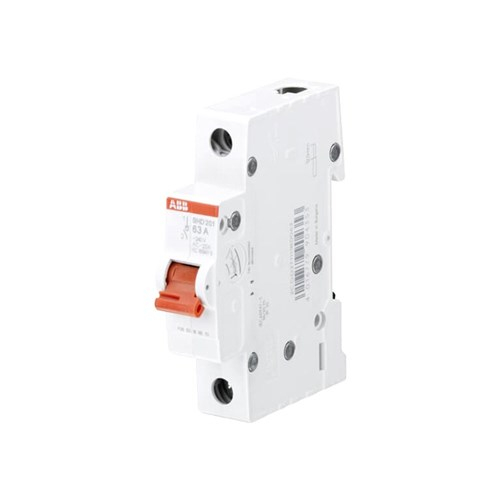

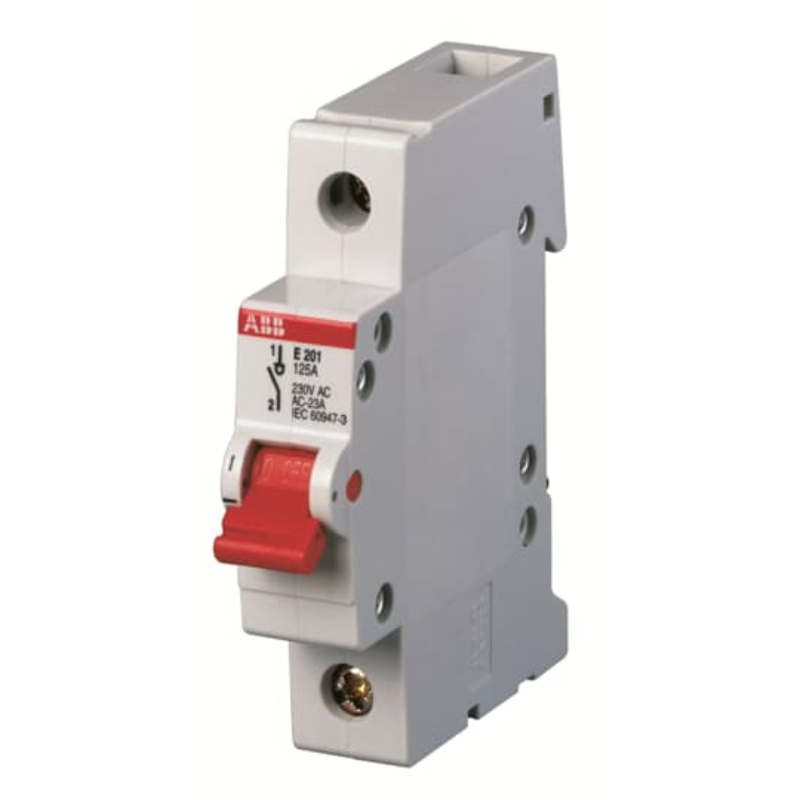

ABB E20180RD SWITCH DISCONNECTOR 1P 80A 230/400VAC

Product Code: E20180RD

The ABB Switch Disconnector is a 1 Pole device with a current rating of 80A. It operates at a voltage of 230/400VAC and is designed for load break switching and isolation. This switch disconnector is part of the domestic range offered by ABB.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 230/400
Application Domestic
Busbar Cross Section (mm²) ≥ 16
Current Rating (A) 80
DC Voltage (V) 60
Degree of Protection IP10
Dimensions (mm) 85H x 69D x 17.5W
Family E200
Housing Material Grey, RAL 7035
Inc-Rated Conditional Short Circuit Capacity (kA) 25
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
Mounting Type DIN Rail
No. of Poles 1P
Pole Width (mm) 17.5
Poles 1P
Power Loss (W) 2.6/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 25
Rated Current (A) 80
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Operational Voltage AC (V) 230/400
Rated Operational Voltage DC (V) 60
Series E200
Standards and Approvals AS/NZS 60947-3
