Built-in Depth (mm)	69
Switching Type	Off Switch
Voltage Type	AC/DC
Brand	ABB
Impulse Withstand Voltage (kV/1.2µS)	4
AC Voltage (V)	240/415
Application	Domestic
Cable Cross Section - Flexible (mm²)	Top/Bottom - 16/16
Cable Cross Section - Solid/Stranded (mm²)	Top/Bottom - 25/25
Current Rating (A)	63
DC Voltage (V)	60
Degree of Protection	IP20
Dimensions (mm)	17.5W x 85H x 69D
Family	SHD200
Housing Material	Insulation Group II, RAL 7035
Inc-Rated Conditional Short Circuit Capacity (kA)	10
Maximum Operational Voltage AC (V)	252
Maximum Operational Voltage DC (V)	63
Minimum Operational Voltage AC (V)	12
Mounting Type	DIN Rail
No. of Normally-open Contacts	1
No. of Poles	1
Pole Width (mm)	17.5
Poles	1P
Pollution Degree	3
Power Loss (W)	5.03/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	10
Rated Current (A)	63
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	440
Rated Operational Voltage AC (V)	240
Rated Operational Voltage DC (V)	60
Rated Voltage (V)	240
Series	SHD200
Standards and Approvals	AS/NZS 60947-3
Width in Number of Modular Spacings	1

DIN MCB

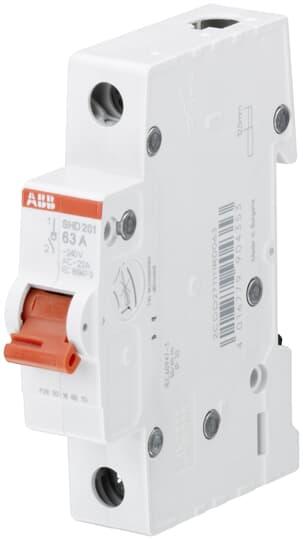

ABB SHD20163 SWITCH DISCONNECTOR 1P 63A 230/400VAC
