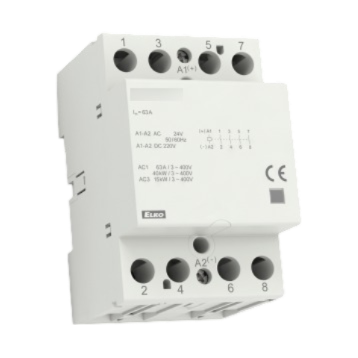

ELKO VS463-40/230V DIN CONTACTOR 4NO, 63A (AC-1), CONTROL 230V AC/DC

Product Code: VS463-40/230V

The Din Contactor is a 4NO contact device with a current rating of 63A (AC1). It operates on a control voltage of 230V AC/DC. With a width of 3 modules (each module being 17.5mm wide), it provides IP20 protection. This contactor is designed for switching resistive loads and three-phase induction motors, making it suitable for heating, lighting, hot water, and storage heating applications. It can be easily mounted on a DIN Rail.

Technical Specifications

Brand ELKO
Contacts 4NO
Degree of Protection IP20
Dielectrical Strength (kV) 4
Dimensions (mm) 53.3 x 84 x 60
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 3
No. of Poles 4P
Operational Temperature Range (°C) -5 to +55
Rated Insulation Voltage (V) 440
Rated Operational Current AC-1 (A) 63
Rated Supply Voltage AC/DC (V) 230
Series VS
