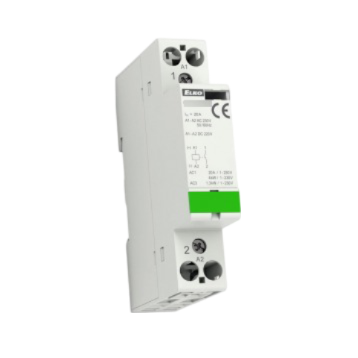

ELKO VS120-10/230V DIN CONTACTOR 1NO, 20A (AC-1), CONTROL 230V AC/DC

Product Code: VS120-10/230V

The Din Contactor is a compact and versatile device designed for switching resistive loads and three-phase induction motors. It has 1 normally open contact and a current rating of 20A (AC1). The control voltage can be either 230V AC or DC. With a width of just 1 module (17.5mm), it is easy to install on a DIN Rail. The contactor offers IP20 protection, making it suitable for various applications including heating, lighting, hot water, and storage heating.

Technical Specifications

Brand ELKO
Contacts 1NO
Degree of Protection IP20
Dielectrical Strength (kV) 4
Dimensions (mm) 17.5 x 85 x 60
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 1
No. of Poles 2P
Operational Temperature Range (°C) -5 to +55
Rated Insulation Voltage (V) 230
Rated Operational Current AC-1 (A) 20
Rated Supply Voltage AC/DC (V) 230
Series VS
