Minimum Switching Capacity (mA)	25
Minimum Switching Capacity AC (V)	24
Rated Operational Current AC-22A 400V (A)	16
Rated Operational Current DC-22A 200V (A)	1
Rated Operational Current DC-22A 50V (A)	16
Rated Service Short-Circuit Breaking Capacity - Ics (kA)	3
Brand	ABB
Connecting Capacity	Solid 1 x 1 - 6mm² Solid 2 x 2.5mm² Flexible 1 x 0.75 - 2 x 2.5mm²
Conductor Material	Copper
Degree of Protection	IP20
Dimensions (mm)	9W x 85H x 68D
No. of Modules - Width 17.5 mm	0.5
No. of Normally-closed Contacts	1
No. of Poles	1
Operational Temperature Range (°C)	-25 to 55
Power Loss (W)	0.32
Rated Current (A)	16
Rated Frequency (Hz)	50 - 60
Rated Impulse Withstand Voltage (kV)	6
Rated Operational Voltage AC (V)	250/400
Rated Voltage (V)	250
Standards and Approvals	EN60669-1, EN60669-2-4, IEC/EN60947-3, IEC60068-2-2, IEC60068-2-1, IEC60068-2-30, VDE0632-1, VDE0632-2-4, UL508
Storage Temperature Range (°C)	-40 to +70
Switch Type	Double Interrupting Contacts
Weight (g)	35

DIN Accessories

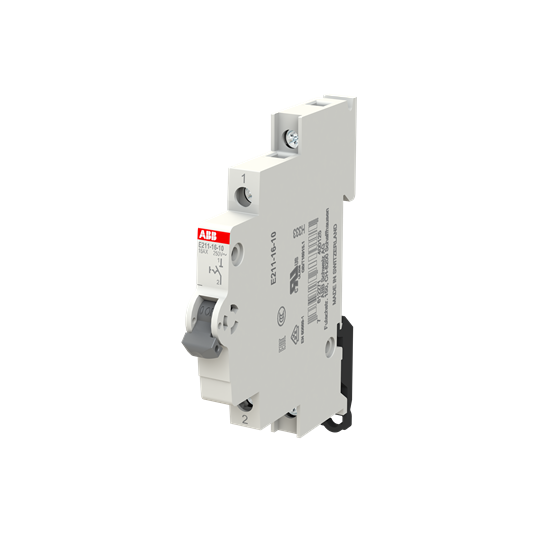

ABB DIN CHANGEOVER SWITCH 1NO 16A 250V TOGGLE E211-16-10
