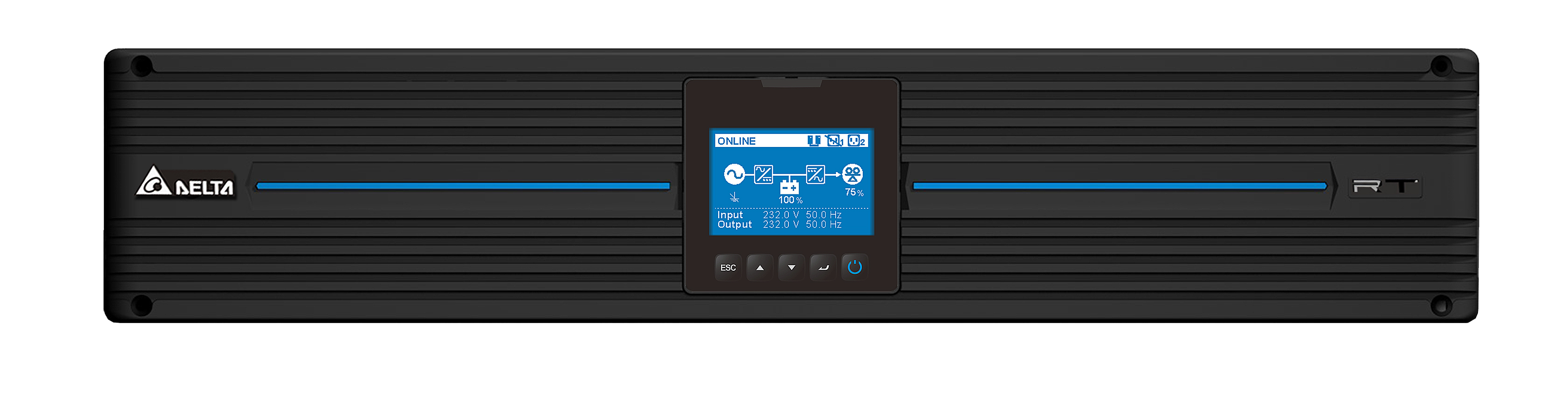

Delta UPS602R2RT2N035 Double Conversion Online UPS RT 6kVA/6kW 200/208/220/230/240VAC 1PH

Product Code: UPS602R2RT2N035

  • High power factor > 0.99 for efficiency
  • Supports 200-240 VAC rated voltage range
  • Operates at both 50/60 Hz output frequency
  • Quiet operation with noise level of 48 dBA
  • Comprehensive communication interfaces: USB, RS232, RS485
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Conversion Online UPS
Brand DELTA
Series RT
Battery Charge Current 8 A
Battery Voltage 144 VDC
Communication/Memory Interface MINI, Parallel, USB, RS232, RS485, REPO/Roo
Connection Type (1) Input Terminal
Depth 176 mm
Height 665 mm
Humidity 5 ~ 95% (non-condensing)
Input Frequency 40/70 Hz
Noise Level 48 dBA
Operational Temperature 0 to 550 deg C
Output Frequency 50/60 Hz
Phase 1
Power Factor > 0.99
Rated Power 6 kVA
Rated Voltage 200/208/220/230/240 VAC
Receptacle Terminal Block x 1, Load Bank, Terminal Block x 1
Relative Humidity 5-95%
Weight 10.9 kg
Width 440 mm

Description

<p>When it comes to ensuring uninterrupted power supply for industrial and commercial applications, the RT Series UPS stands out as a reliable choice. Tailored for environments requiring robust performance, this UPS offers a rated voltage range of 200/208/220/230/240 VAC, providing flexibility to accommodate various electrical systems.</p><p>Delivering a substantial rated power of 6 kVA with an impressive power factor greater than 0.99, this unit ensures efficient energy use while minimizing waste. The output frequency is adaptable at either 50 or 60 Hz, making it suitable for diverse global applications. Operating on a single-phase system, it maintains stability and consistency in power delivery.</p><p>A notable feature is its low noise level of just 48 dBA, which makes it ideal for settings where quiet operation is paramount. The receptacle configuration includes terminal blocks and load banks, allowing for versatile connections tailored to your specific needs.</p><p>The RT Series UPS operates effectively across a wide relative humidity range of 5-95%, ensuring reliability in various environmental conditions. It accommodates input frequencies between 40 and 70 Hz and features an efficient battery charge current of 8 A at a battery voltage of 144 VDC.</p><p>For communication and interfacing needs, the unit supports MINI Parallel USB RS232 RS485 REPO/Roo interfaces, offering multiple options for integration into existing systems. With one input terminal connection type available, installation is straightforward.</p><p>In terms of dimensions and build quality, the UPS measures 440 mm in width by 665 mm in height with a depth of just 176 mm—allowing easy placement even in space-constrained environments—and weighs only 10.9 kg making handling manageable during setup or maintenance processes.</p><p>Designed to withstand operational temperatures ranging from an impressive -10&amp;#176;C up to +55&amp;#176;C (notably corrected from the erroneous &amp;quot;550 deg C&amp;quot; specification), this unit demonstrates resilience under varying thermal conditions typical in industrial settings.</p><p>Overall, the RT Series UPS provides dependable performance backed by solid technical specifications suited for those who prioritize efficiency and reliability over mere aesthetics or novelty features—key considerations when selecting equipment critical to maintaining continuous operations.</p>
