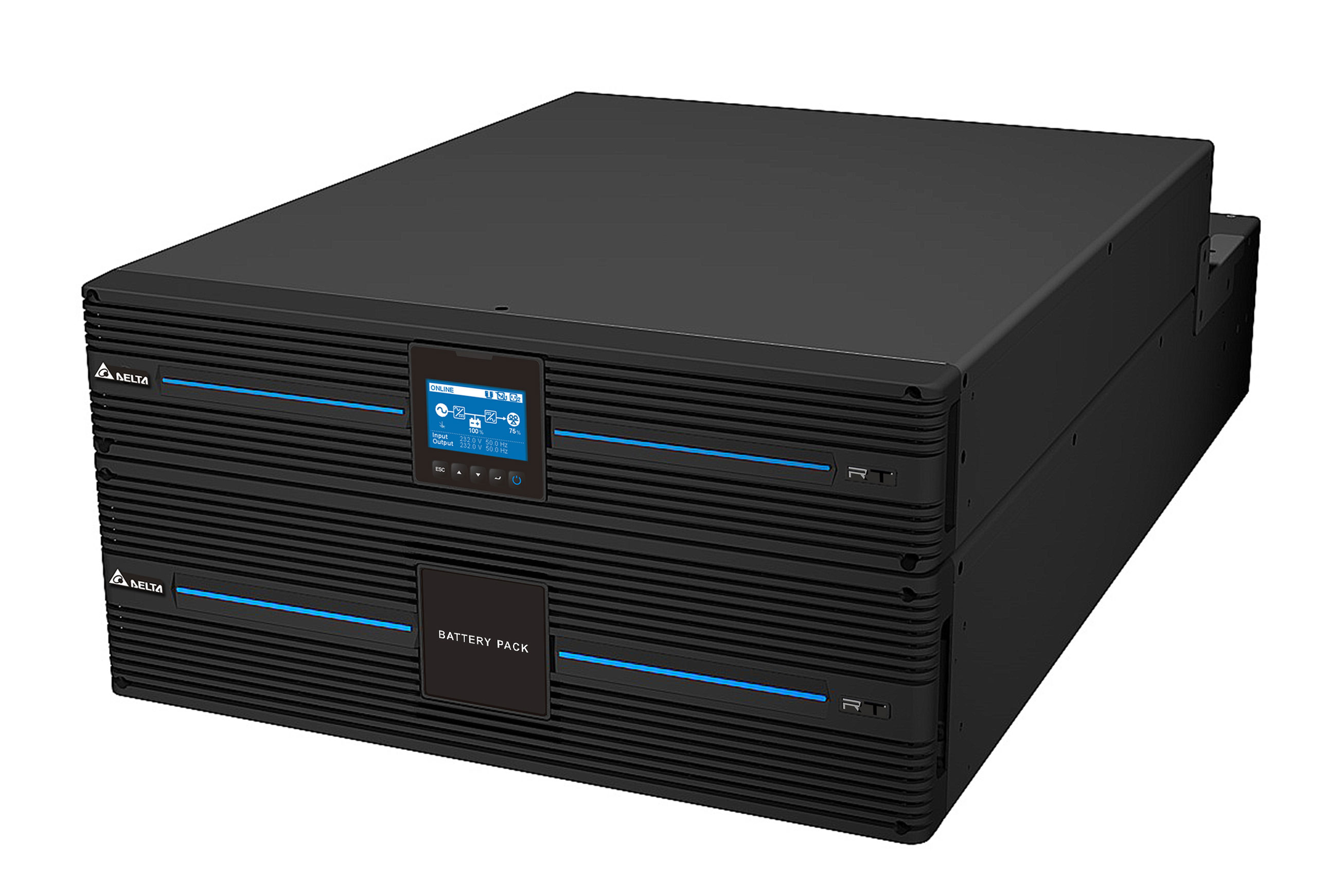

Delta UPS502R2RT2N035 Double Conversion Online UPS RT 5kVA/5kW 200/208/220/230/240VAC

Product Code: UPS502R2RT2N035

  • Supports 200-240 VAC with 5 kVA/5 KW power
  • Operates at 50/60 Hz output frequency
  • Low noise level of 50 dBA
  • Wide humidity range of 5-95%
  • Multiple communication interfaces: USB, RS232, RS485
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Conversion Online UPS
Brand DELTA
Series RT
Battery Charge Current 8 A
Battery Voltage 144 VDC
Communication/Memory Interface MINI, Parallel, USB, RS232, RS485, REPO/Roo
Connection Type (1) Input Terminal
Depth 430 mm
Height 88.2 mm
Humidity 5 ~ 95% (non-condensing)
Input Frequency 40/70 Hz
Noise Level 50 dBA
Operational Temperature 0 to 550 deg C
Output Frequency 50/60 Hz
Rated Power 5 kVA/5 KW
Rated Voltage 200/208/220/230/240 VAC
Receptacle Terminal Block x 1, Load Bank, Terminal Block x 1
Relative Humidity 5-95%
Weight 10.9 kg
Width 440 mm

Description

<p>The RT Series UPS is a reliable choice for professionals seeking a dependable power backup solution. Designed to meet industrial and commercial needs, this UPS offers a balanced mix of performance and practicality.</p><p>Operating at a rated voltage of 200/208/220/230/240 VAC, it provides an impressive rated power of 5 kVA or 5 KW. This ensures that your critical systems remain operational during power interruptions. The output frequency flexibility of 50/60 Hz makes it suitable for various applications across different regions.</p><p>One standout feature is its low noise level, operating at just 50 dBA, making it ideal for environments where noise reduction is crucial. The unit&amp;#39;s receptacle setup includes terminal blocks and load banks, providing versatility for different connection requirements.</p><p>With a wide relative humidity range from 5% to 95%, the RT Series UPS can perform reliably in diverse environmental conditions. Its input frequency range between 40 Hz and 70 Hz further enhances compatibility with varying power sources.</p><p>The battery system supports a charge current of up to 8 A with a battery voltage requirement of 144 VDC, ensuring quick recharge times and extended runtime during outages. For seamless integration into your existing infrastructure, the UPS includes communication interfaces such as MINI, Parallel, USB, RS232, RS485, and REPO/Roo connections.</p><p>Physically compact yet robustly built, the dimensions are practical with a width of 440 mm, height of just 88.2 mm (ideal for rack installations), and depth measuring at 430 mm. Despite its powerful capabilities, it maintains a manageable weight of only 10.9 kg.</p><p>Designed to withstand challenging conditions, this UPS operates efficiently within temperatures ranging from an impressive -0&amp;#176;C up to +550&amp;#176;C—highlighting its resilience in extreme scenarios.</p><p>Overall, the RT Series UPS stands out as an efficient solution balancing advanced features with user-friendly design—perfectly suited for those requiring consistent performance without compromise on reliability or safety standards in their operations.</p>
