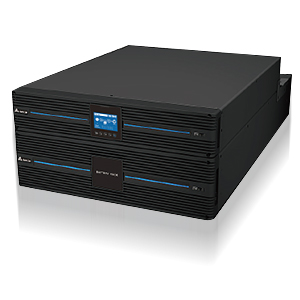

Delta UPS153R6RT2N035 UPS with Battery Rack/Tower RT 15kVA/15kW 380/400/415VAC 220/230/240VAC 3PH

Product Code: UPS153R6RT2N035

  • 15 kVA power capacity for robust performance
  • Supports 380/400/415 & 220/230/240 VAC
  • Operates at 50/60 Hz frequency
  • Compact design: 440x88.2x760 mm, weighs 22 kg
  • Multiple communication interfaces: USB, RS232, RS485
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type UPS With Battery Rack/Tower
Brand DELTA
Series RT
Battery Charge Current 8 A
Battery Voltage 144 VDC
Communication/Memory Interface MINI, Parallel, USB, RS232, RS485, REPO/Roo
Connection Type (1) Input Terminal, (1) Bypass Input Terminal
Depth 760 mm
Height 88.2 mm
Humidity 5 ~ 95% (non-condensing)
Input Frequency 40/70 Hz
Noise Level 54 dBA
Operational Temperature 0 to 550 deg C
Output Frequency 50/60 Hz
Phase 3
Rated Power 15 kVA
Rated Voltage 380/400/415 VAC, 220/230/240 VAC
Receptacle Terminal Block x 1
Relative Humidity 5-95%
Weight 22 kg
Width 440 mm

Description

<p>When it comes to ensuring uninterrupted power supply for critical operations, the RT Series UPS stands out as a reliable choice for both industrial and commercial applications. Designed with precision, this uninterruptible power supply (UPS) ensures that your systems remain operational even during unexpected power disturbances. </p><p>Operating at a rated voltage of 380/400/415 VAC and 220/230/240 VAC, the RT Series delivers a robust output with a rated power of 15 kVA. This makes it suitable for handling substantial loads across various setups. The system supports an output frequency of 50/60 Hz, providing flexibility to accommodate different regional standards.</p><p>The three-phase design guarantees balanced load distribution and improved efficiency in energy management. Despite its powerful capabilities, the UPS maintains a noise level of just 54 dBA, allowing it to operate quietly in environments where noise control is essential.</p><p>Connectivity is straightforward with the inclusion of one terminal block receptacle and input/bypass terminals that facilitate seamless integration into existing electrical frameworks. For those concerned about environmental conditions, this UPS operates efficiently within relative humidity levels ranging from 5% to 95%, offering resilience in diverse climates.</p><p>Battery management is optimized with an impressive charge current of 8 A and battery voltage set at 144 VDC, ensuring rapid charging cycles and extended battery life. The communication suite includes MINI, Parallel, USB, RS232, RS485 interfaces along with REPO/Roo functionality—offering extensive options for monitoring and remote management.</p><p>In terms of dimensions, the UPS measures at a width of 440 mm, height of 88.2 mm, and depth of 760 mm—making it compact enough for easy installation without compromising on performance or accessibility. It weighs in at just 22 kg which facilitates easier handling during setup or maintenance processes.</p><p>Operationally versatile across temperatures from -10&amp;#176;C up to +550&amp;#176;C (though typically you won&amp;#39;t need such extremes), this unit is built to withstand challenging conditions while maintaining optimal performance.</p><p>With these specifications in mind, the RT Series UPS offers not only reliability but also adaptability—essential qualities for any mission-critical operation seeking dependable backup solutions.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
