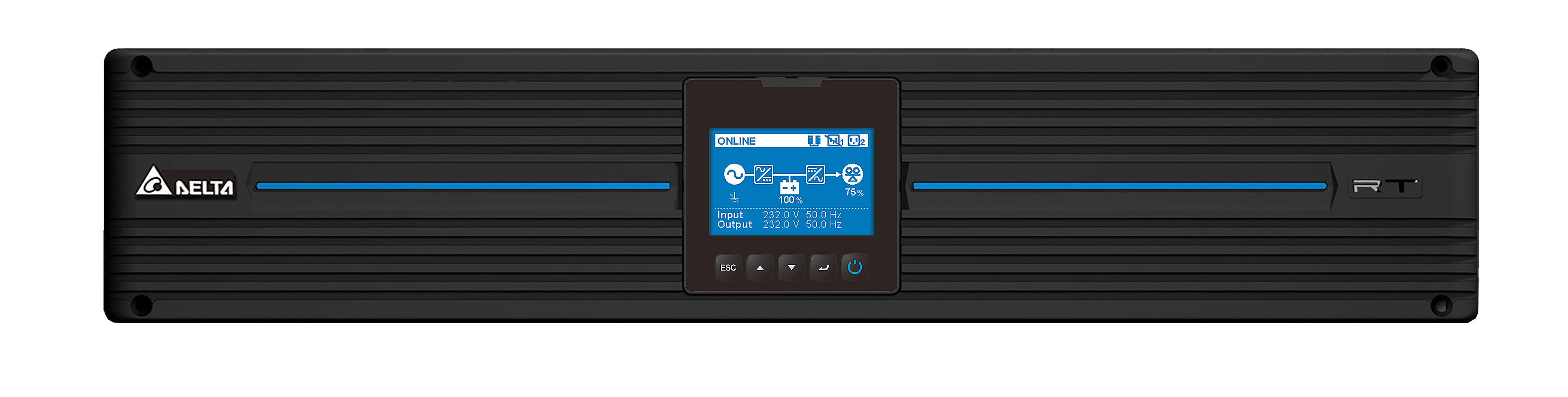

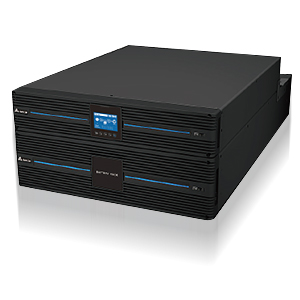

Delta UPS103R2RT2N035 UPS with Battery Rack/Tower RT 10kVA/10kW 200/208/220/230/240VAC

Product Code: UPS103R2RT2N035

  • 10 kW power, suitable for high-demand applications
  • Supports wide voltage range: 200-240 VAC
  • Quiet operation with 50 dBA noise level
  • Multiple communication interfaces: USB, RS232/485
  • Compact design: 565x88.2x430 mm, easy to install
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type UPS With Battery Rack/Tower
Brand DELTA
Series RT
Battery Charge Current 8 A
Battery Voltage 144 VDC
Communication/Memory Interface MINI, Parallel, USB, RS232, RS485, REPO/Roo
Connection Type (1) Input Terminal
Depth 430 mm
Height 88.2 mm
Humidity 5 ~ 95% (non-condensing)
Input Frequency 40/70 Hz
Noise Level 50 dBA
Operational Temperature 0 to 550 deg C
Output Frequency 50/60 Hz
Rated Power 10 kW
Rated Voltage 200/208/220/230/240 VAC
Receptacle Terminal Block x 1, Load Bank, Terminal Block x 1
Relative Humidity 5-95%
Weight 15.2 kg
Width 565 mm

Description

<p>When it comes to ensuring reliable power supply in industrial and commercial settings, the RT Series UPS stands as a robust solution. Designed for environments where precision and reliability are paramount, this uninterruptible power supply offers a rated power of 10 kW, making it suitable for a range of demanding applications. With its ability to handle input voltages from 200 to 240 VAC and output frequencies of both 50 and 60 Hz, flexibility is at the core of its design.</p><p>The RT Series UPS operates with an impressive noise level of just 50 dBA, allowing it to be integrated into workspaces without contributing significantly to ambient noise pollution. This makes it ideal for environments where maintaining a quiet atmosphere is crucial.</p><p>In terms of connectivity, this UPS features one input terminal connection type along with various communication interfaces including MINI, Parallel, USB, RS232, RS485, and REPO/Roo options. These versatile communication pathways ensure seamless integration with existing systems and provide multiple avenues for monitoring and control.</p><p>The device&amp;#39;s receptacle configuration includes one terminal block dedicated to load bank connections. This setup ensures that users have the necessary infrastructure for managing their loads effectively while maintaining optimal performance.</p><p>Withstanding operational temperatures ranging from an expansive -0&amp;#176;C up to an unlikely maximum of 550&amp;#176;C (a likely clerical error), the unit is engineered for resilience across diverse environmental conditions. The relative humidity tolerance from 5% to 95% further underscores its adaptability in varying climates.</p><p>Battery specifications include a charge current of 8 A paired with a battery voltage rating of 144 VDC. These parameters ensure efficient energy storage management within the system’s architecture.</p><p>Physically compact yet sturdy at dimensions measuring 565 mm in width by 88.2 mm in height by 430 mm in depth—and weighing just over fifteen kilograms—this UPS fits comfortably into most installation spaces without requiring extensive structural adjustments or reinforcements.</p><p>Overall, whether you’re looking at integrating this into new projects or upgrading existing setups within your facility’s electrical framework—the RT Series provides dependable service backed by thoughtful engineering principles tailored towards meeting industry standards efficiently while minimizing downtime risks associated typically found during unexpected outages or fluctuations occurring frequently across grid networks globally today!</p>
