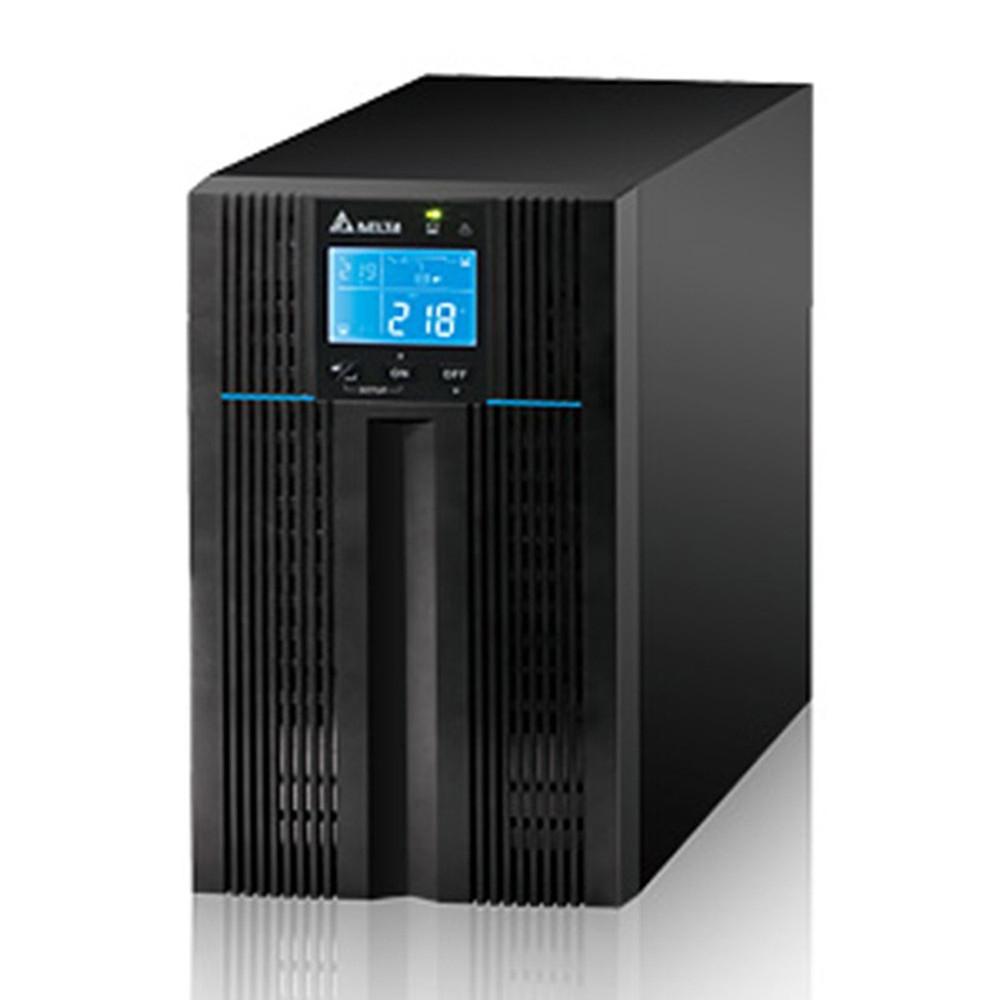

Delta UPS602N2004N035 Double Conversion Online UPS N 6kVA/6kW 200/208/220/230/240VAC

Product Code: UPS602N2004N035

  • Supports 200-240 VAC for versatile use
  • Delivers 6 kVA power output
  • Operates quietly at <50 dBA
  • Wide humidity tolerance of 5-95%
  • Smart Slot for enhanced communication
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Conversion Online UPS
Brand DELTA
Series N
Battery Charge Current 1.5-8 A
Battery Voltage 192-264 VDC
Communication/Memory Interface Parallel, Smart Slot
Connection Type N/A
Depth 390 mm
Height 325 mm
Humidity 5% - 95% RH
Input Frequency 40/70 Hz
Noise Level <50 dBA
Operational Temperature 0 to 400 deg C
Output Frequency 40/70 Hz
Rated Power 6 kVA
Rated Voltage 200/208/220/230/240 VAC
Relative Humidity 5-95%
Weight 10.1 kg
Width 190 mm

Description

<p>The N Series UPS is a robust solution designed for industrial and commercial applications, providing reliable power backup with efficiency and precision. Operating at a rated voltage of 200/208/220/230/240 VAC, this unit delivers a substantial rated power output of 6 kVA, making it suitable for a wide range of electrical systems. The flexible output frequency range from 40 to 70 Hz ensures compatibility with diverse equipment requirements.</p><p>Engineered to maintain optimal performance in varying environmental conditions, the UPS supports an operational temperature range from 0 to 400 degrees Celsius and can withstand relative humidity levels between 5% and 95%. This adaptability makes it particularly useful in challenging climates or demanding industrial settings.</p><p>The noise level is kept below 50 dBA, promoting a quieter working environment—ideal for spaces where noise reduction is crucial. Additionally, the unit&amp;#39;s compact dimensions (190 mm width, 325 mm height, and 390 mm depth) allow for easy integration into existing setups without requiring extensive space adjustments.</p><p>From an energy management perspective, the UPS features a battery charge current ranging from 1.5 to 8 A and operates on battery voltages between 192-264 VDC. These specifications ensure efficient charging cycles while maximizing battery lifespan—a critical factor for maintaining uninterrupted operations during power outages.</p><p>For seamless communication and control integration, the device includes parallel connectivity options alongside Smart Slot capabilities. This feature set enables enhanced monitoring and customization opportunities through compatible software interfaces or hardware expansions.</p><p>Despite its comprehensive functionality, the unit maintains a manageable weight of just over ten kilograms (10.1 kg), facilitating easier handling during installation or maintenance procedures.</p><p>This N Series UPS stands as a dependable choice within its category due to its balanced combination of technical proficiency and practical design considerations—meeting rigorous standards expected by professionals who prioritize reliability above all else in their power solutions arsenal.</p>
