Product Code: UPS103N2004N035

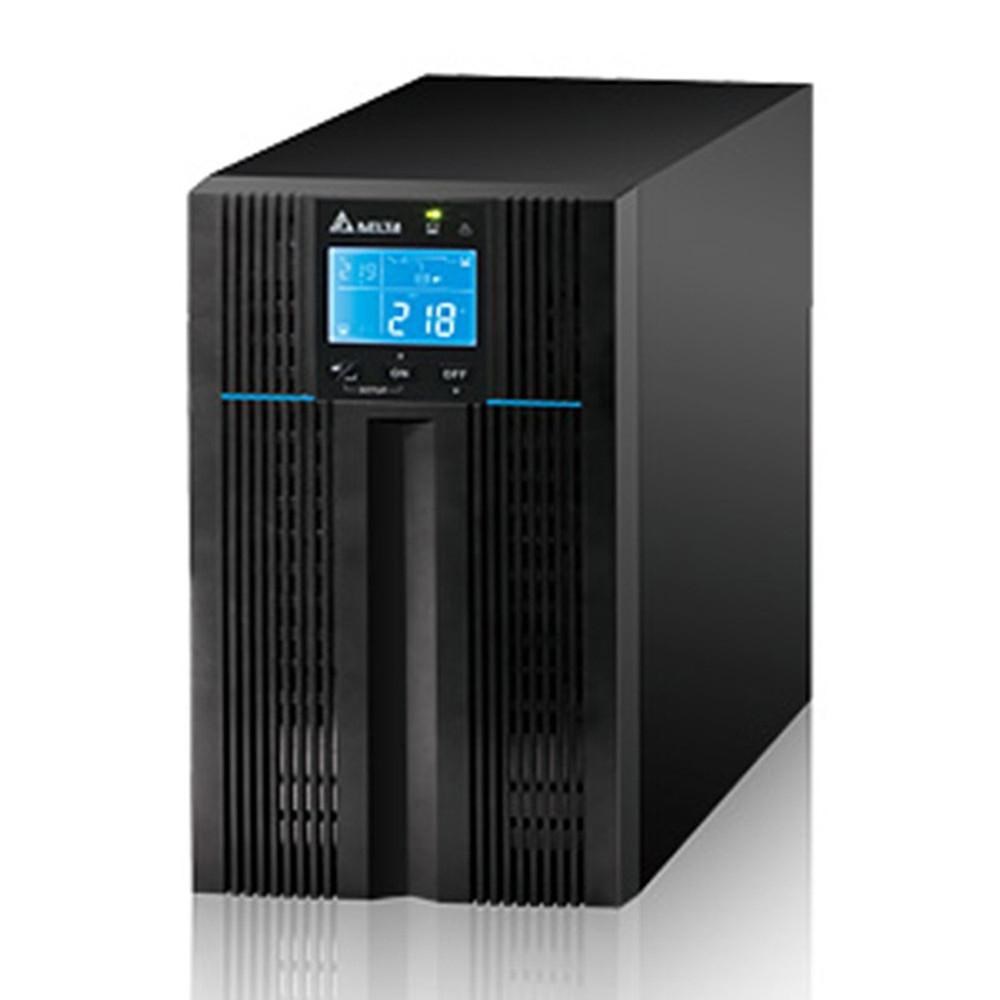

The Delta Amplon N Pro Series 10KVA/10KW UPS offers reliable online double conversion technology in a tower-only design. This unit does not come with internal batteries, necessitating the use of an external battery cabinet. It is equipped with an inbuilt bypass switch for added resilience and features one smart slot for expandability. With dimensions of 190W x 390D x 325H (mm) and weighing 12.7kg, at least one external battery module (EBM) is required to complete the minimum configuration for operation.

Battery Charge Current (A)	1.5-8
Battery Voltage DC (V)	192-264
Input Frequency Range (Hz)	40-70
Noise Level (dBA)	< 50
Output Frequency Range (Hz)	40-70
Output Receptacle	N/A
Power Rating (W)	10kVA/10KW
Voltage Range AC (V)	200/208: 100-280, 220/230/240: 100-280
Brand	DELTA
Communication Interface	Parallel Port x2, Smart Slot x1
Connection Type	N/A
Dimensions (mm)	190 W x 325 H x 390 D
Humidity	5% - 95% RH
Nominal Voltage AC (V)	200/208/220/230/240
Operational Temperature Range (°C)	0 - 400 (Full Load)
Output Voltage AC (V)	200/208/220/230/240
Series	N
Weight (kg)	12.7

Uninterruptible Power Supplies (UPS)

DELTA AMPLON N 10KVA/10KW UPS ODC Tower No Internal Batteries UPS103N2004N035

Product Code: UPS103N2004N035

Technical Specifications
