Product Code: UPA302M2MX0B0BB

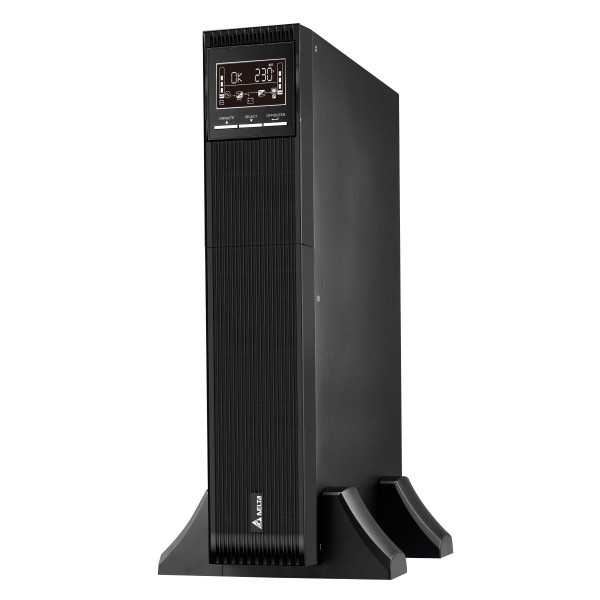

The Delta AMPLONMX 3000VA/2700W UPS offers reliable line-interactive power protection with pure sine wave output. Designed for versatility, it can be mounted as a rack or tower and features an array of outputs including eight IEC C13 and one IEC C19 sockets. It supports a 15A input and includes a MINI Slot for additional connectivity options. Note that installation requires the separate purchase of rail kit part number 3915100011. Dimensions stand at 438W x 630D x 88H (mm), with a weight of 32.1kg, making it a compact yet robust choice for safeguarding your critical equipment.

Battery Recharge Type (hrs)	4
Input Frequency Range (Hz)	50/60Hz (Auto-Detection)
Noise Level (dBA)	<45dBA @ Normal mode, < 55dBA @ Batt.mode
Output Frequency Range (Hz)	50/60 ± 1
Output Receptacle	IEC C13 (4+4), IEC C19 (1)
Power Rating (W)	3000VA / 2700W
Voltage Range AC (V)	150 - 290
Brand	DELTA
Communication Interface	RS-232 Port x 1 USB Port x 1 MINI Slot x 1 Surge Protection & REPO
Connection Type	IEC C14
Dimensions (mm)	438 W x 88 H x 630 D
Humidity	20 - 90% RH
Nominal Voltage AC (V)	200: 150-234/ 208: 156-243/ 220 : 162-268/ 230 : 170-280/ 240: 177-290
Operational Temperature Range (°C)	0 - 400
Output Voltage AC (V)	200 - 240
Series	MX
Weight (kg)	32.1 (Net)

Uninterruptible Power Supplies (UPS)

DELTA AMPLON MX 3000VA/2700W UPS IEC C13 (4+4)+IEC C19 Rack/Tower UPA302M2MX0B0BB

Product Code: UPA302M2MX0B0BB

Technical Specifications
