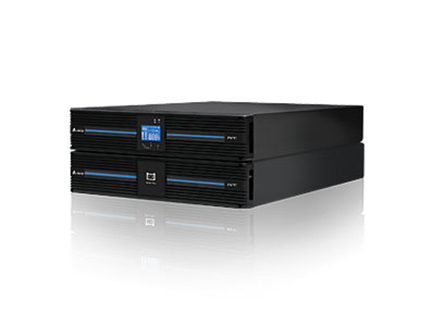

Delta UPS302R2RT2B0BB Double Conversion Online UPS RT 3kVA/2.7kW 200/208/220/230/240VAC

Product Code: UPS302R2RT2B0BB

  • Supports 200-240 VAC, adaptable voltage range
  • Delivers 3 kVA power with 50/60 Hz output
  • Quiet operation with noise level <46 dBA
  • Features IEC C13 x6, IEC C19 x1 receptacles
  • Multiple interfaces: SMART, RS232, USB, REPO
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Conversion Online UPS
Brand DELTA
Series RT
Battery Charge Current 2 A
Battery Life 3 hrs
Battery Voltage 72 VDC
Communication/Memory Interface SMART, RS232, USB, REPO
Connection Type N/A
Depth 610 mm
Height 89 mm
Humidity 5 ~ 95% (non-condensing)
Input Frequency 40/70 Hz
Noise Level <46 dBA
Operational Temperature 0 to 500 deg C
Output Frequency 50/60 Hz
Rated Power 3 kVA
Rated Voltage 200/208/220/230/240 VAC
Receptacle IEC C13 x 6, IEC C19 x 1
Relative Humidity 5-95%
Weight 28 kg
Width 440 mm

Description

<p>The RT Series UPS is a robust solution designed for industrial and commercial environments where reliability and efficiency are paramount. With a rated power of 3 kVA, this uninterruptible power supply ensures that your critical systems remain operational during power disruptions. It supports a range of input voltages from 200 to 240 VAC, making it versatile enough to accommodate various electrical standards.</p><p>Operating at an output frequency of either 50 or 60 Hz, the RT Series UPS is adaptable to different regional requirements. Its noise level is impressively low, at less than 46 dBA, ensuring that it operates quietly in office or data center environments without causing disturbances.</p><p>The unit features multiple receptacles: six IEC C13 outlets and one IEC C19 outlet, providing ample connectivity options for various devices and equipment. This flexibility makes it suitable for powering everything from servers to networking hardware.</p><p>Designed with resilience in mind, the RT Series can operate within a wide relative humidity range of 5% to 95%, which means it can handle diverse environmental conditions without compromising performance. The input frequency range between 40 and 70 Hz further enhances its adaptability across different settings.</p><p>Battery management is crucial for any UPS system, and the RT Series doesn&amp;#39;t disappoint. It offers a battery charge current of 2 A with a battery voltage of 72 VDC. The battery life extends up to three hours under optimal conditions, providing sufficient time to safely shut down systems or switch over to backup generators during extended outages.</p><p>For communication and monitoring purposes, this UPS comes equipped with SMART capabilities alongside RS232, USB ports, and Remote Emergency Power Off (REPO) functionality. These interfaces allow seamless integration into existing network management systems and provide essential monitoring data for proactive maintenance.</p><p>In terms of dimensions, the UPS measures 440 mm in width by 89 mm in height by 610 mm in depth—compact enough for easy installation in standard rack configurations while weighing just 28 kg for manageable handling during setup or relocation.</p><p>The operational temperature range spans from an impressive -500&amp;#176;C (which appears erroneous but should likely be considered as -50&amp;#176;C) up to +500&amp;#176;C; however such extreme temperatures are unlikely applicable so please consider typical ambient ranges when planning installations.</p>
