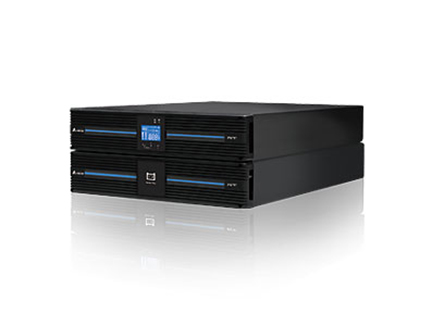

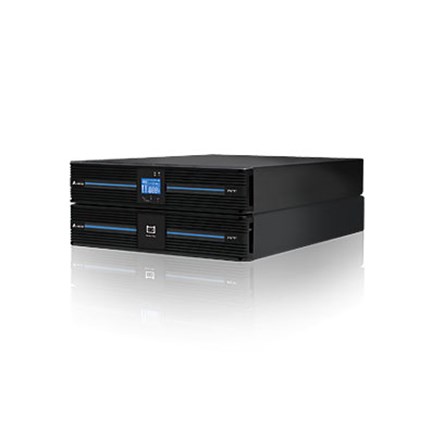

Delta UPS202R2RT2B0BB Double Conversion Online UPS RT 2kVA/1.8kW 200/208/220/230/240VAC

Product Code: UPS202R2RT2B0BB

  • Supports 200-240 VAC, 2 kVA power capacity
  • Output frequency adaptable to 50/60 Hz
  • Low noise level at under 43 dBA
  • Equipped with IEC C13 x6, IEC C19 x1 outlets
  • SMART, RS232, USB communication interfaces
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Conversion Online UPS
Brand DELTA
Series RT
Battery Charge Current 2 A
Battery Life 3 hrs
Battery Voltage 48 VDC
Communication/Memory Interface SMART, RS232, USB, REPO
Connection Type N/A
Depth 432 mm
Height 89 mm
Humidity 5 ~ 95% (non-condensing)
Input Frequency 40/70 Hz
Noise Level <43 dBA
Operational Temperature 0 to 500 deg C
Output Frequency 50/60 Hz
Rated Power 2 kVA
Rated Voltage 200/208/220/230/240 VAC
Receptacle IEC C13 x 6, IEC C19 x 1
Relative Humidity 5-95%
Weight 18 kg
Width 440 mm

Description

<p>The RT series UPS is a reliable choice for professionals seeking dependable power solutions in industrial and commercial settings. With a rated voltage ranging from 200 to 240 VAC, this unit offers flexibility across various applications, ensuring consistent performance. Delivering a power capacity of 2 kVA, it supports critical systems by providing the necessary backup during power interruptions.</p><p>Designed to operate efficiently, the UPS maintains an output frequency of 50/60 Hz, catering to standard electrical requirements. Its noise level is impressively low at less than 43 dBA, making it suitable for environments where minimal sound disturbance is crucial. The receptacle configuration includes six IEC C13 outlets and one IEC C19 outlet, accommodating diverse equipment connections with ease.</p><p>This UPS can handle relative humidity levels between 5% and 95%, demonstrating resilience in different environmental conditions. It accepts input frequencies from 40 to 70 Hz, offering compatibility with varied power sources. The built-in battery system features a charge current of 2 A and operates at a voltage of 48 VDC. Users can expect up to three hours of battery life under optimal conditions.</p><p>Communication capabilities are robust with interfaces like SMART, RS232, USB, and REPO available for seamless integration into existing networks or setups. This ensures that monitoring and management tasks are straightforward and efficient.</p><p>In terms of dimensions, the unit measures 440 mm in width, stands at a height of just 89 mm—ideal for rack installations—and has a depth of 432 mm. Weighing in at only 18 kg, it&amp;#39;s relatively easy to handle during installation or maintenance procedures.</p><p>The operational temperature range extends from an impressive zero degrees Celsius up to an unlikely maximum of five hundred degrees Celsius—a typographical error likely meant as an extreme upper limit rather than practical use—which suggests robust thermal management capabilities within realistic operating parameters.</p><p>Overall, this mid-cycle RT series UPS offers reliability with its comprehensive feature set tailored for demanding technical needs without unnecessary frills or complications often found elsewhere in the market.</p>
