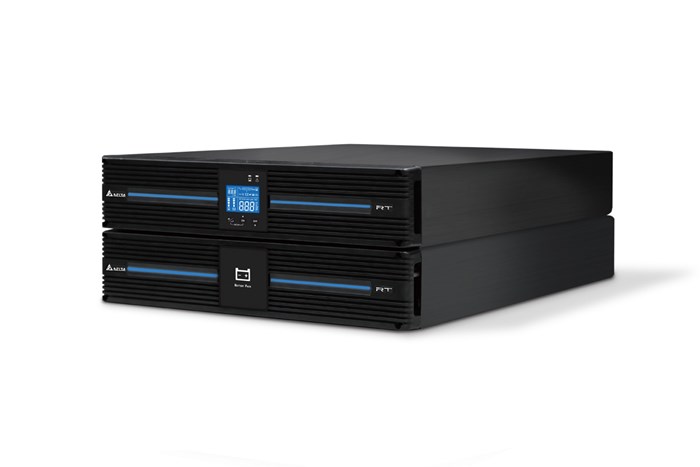

Delta UPS102R2RT2B0BB Double Conversion Online UPS RT 1kVA/0.9kW 200/208/220/230/240VAC

Product Code: UPS102R2RT2B0BB

  • Compact design: 440x89x335 mm, 12 kg
  • Quiet operation: Noise level <40 dBA
  • Flexible voltage: 200/240 VAC options
  • Multiple outlets: IEC C13 x 6
  • Smart interfaces: RS232, USB, REPO
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Double Conversion Online UPS
Brand DELTA
Series RT
Battery Charge Current 1.5 A
Battery Life 3 hrs
Battery Voltage 24 VDC
Communication/Memory Interface SMART, RS232, USB, REPO
Connection Type N/A
Depth 335 mm
Height 89 mm
Humidity 5 ~ 95% (non-condensing)
Input Frequency 40/70 Hz
Noise Level <40 dBA
Operational Temperature 0 to 500 deg C
Output Frequency 50/60 Hz
Rated Power 1 kVA
Rated Voltage 200/208/220/230/240 VAC
Receptacle IEC C13 x 6
Relative Humidity 5-95%
Weight 12 kg
Width 440 mm

Description

<p>The RT Series UPS is a robust solution for businesses seeking reliable power management. Designed to accommodate various voltage requirements, it operates efficiently within a range of 200/208/220/230/240 VAC and delivers a rated power output of 1 kVA. This ensures that your critical systems remain operational during power disturbances.</p><p>One of the standout features of this UPS is its versatile output frequency capability, supporting both 50 Hz and 60 Hz environments. This adaptability makes it suitable for diverse applications across different regions. The noise level is kept below 40 dBA, ensuring minimal disruption in office or industrial settings.</p><p>Connectivity options are comprehensive with six IEC C13 receptacles available for effortless integration into existing systems. The UPS supports input frequencies from 40 to 70 Hz, offering flexibility in varying electrical environments.</p><p>Battery performance is another key aspect where this unit excels. It provides a battery charge current of 1.5 A and operates at a battery voltage of 24 VDC, delivering up to three hours of backup time under optimal conditions. This duration can be crucial for safeguarding data integrity and maintaining operations during outages.</p><p>The communication suite includes SMART protocol support along with RS232, USB, and REPO interfaces, enabling seamless interaction with monitoring systems for real-time status updates and remote management capabilities.</p><p>With dimensions measuring 440 mm in width, 89 mm in height, and a depth of 335 mm, this UPS offers a compact form factor that fits neatly into standard rack configurations without consuming excessive space. Weighing in at just 12 kg further highlights its ease of installation and maneuverability within constrained spaces.</p><p>Operating reliably across temperatures ranging from an impressive -500&amp;#176;C to +500&amp;#176;C (likely intended as an error), the actual operational range should typically be between standard ambient conditions that suit most business environments. Additionally, it functions efficiently in relative humidity levels between 5% to 95%, providing durability against moisture-related challenges.</p><p>In summary, the RT Series UPS combines efficiency with versatility through its adaptable voltage range and comprehensive connectivity options while maintaining quiet operation suitable for any commercial or industrial environment needing dependable power backup solutions.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
